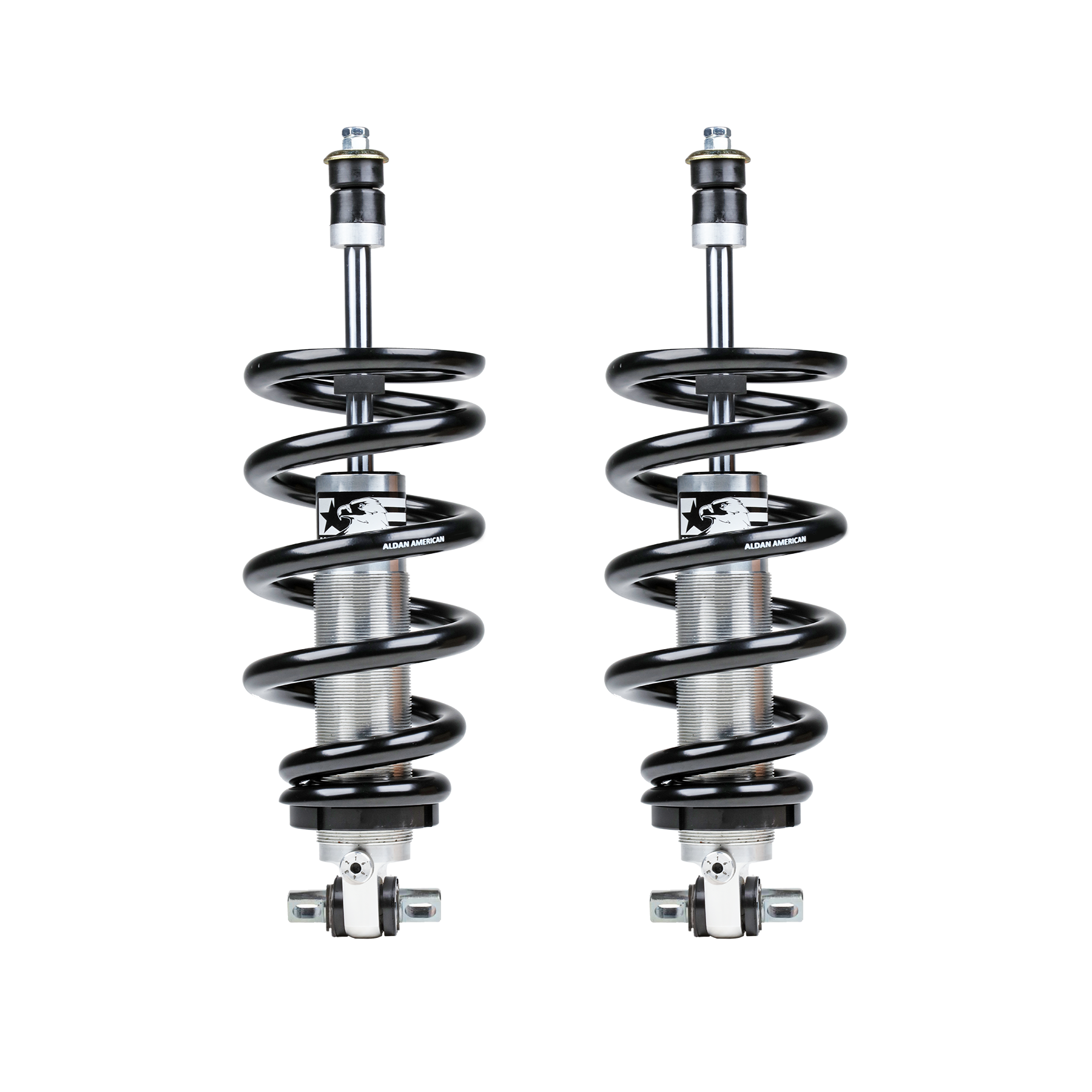

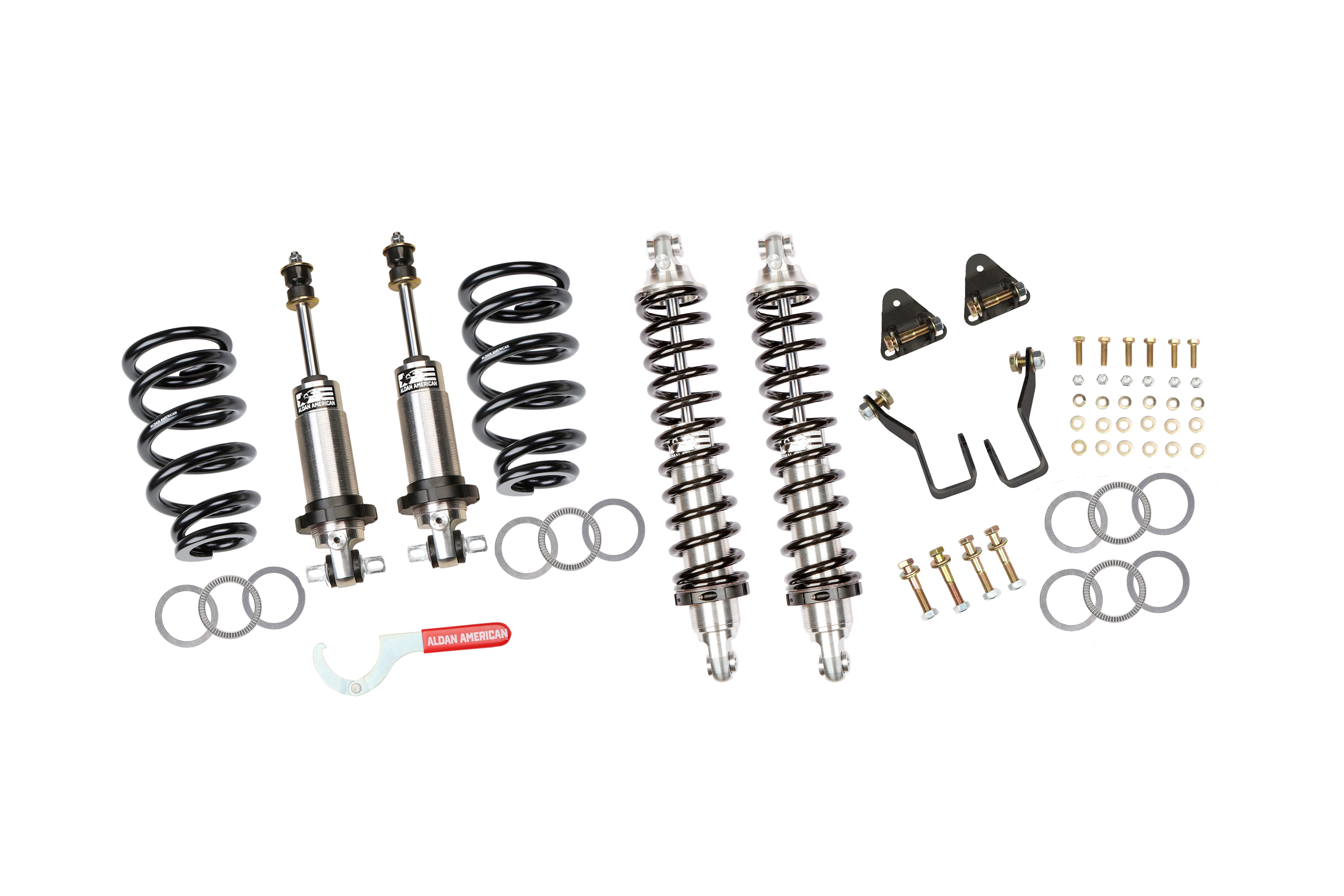

Aldan American Coil-Over Kit GM Road Comp Series Coilover Kits - 300399

We offer dozens of universal coilover and shock absorbers with various mounts, valving and ride-height options. These are great for custom chassis and custom suspensions like 4-links and IFS kits. For vehicle specific applications, we offer thousands of combinations of 100% bolt-on solutions to upgrade to adjustable coilovers and shocks. Other shock accessories like control arms, sway bars, thrust bearings and more are available from Aldan American.

• Aldan Springs are made from steel sourced and manufactured in the U.S.A.

Attributes:

• Brand Name: Aldan American
• GTIN: 00799793165200
• Adjustable Mounting Bracket Included: No
• Adjustable Valving: Yes
• Body Diameter: 2
• Bushing Color: Black
• Bushing Material: Polyurethane
• Coilover Springs Included: Yes
• Collapsed Length: 11.100 in. front, 15.300 in. rear
• Crossmember Included: No
• Extended Length: 16.500 in. front, 23.750 in. rear
• Gas Charged: Yes
• Hardware Included: Yes
• Internal Design: Twin-tube
• Lower Mount: Bar pin, front; Eyelet, rear
• Notes: This kit is designed to be used on cars running 22-24 in. wheels.
• Number of Valving Selections: 6 Front, 11 Rear
• Shock Body Finish: Natural
• Shock Body Material: Aluminum
• Shocks Included: Yes
• Spring Finish: Black powdercoated
• Spring Rate (lbs/in): 800 lbs./in. Front, 250 lbs./in. Rear
• Suspension Height Adjustment: 1.0-2.0 in. Raised Front; 1.0-2.0 in. Raised Rear
• Threaded Adjustment Range: 5.000 in front, 5.000 in rear
• Upper Mount: Stem, front; Eyelet, rear
• Welding Required: No

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 26 x 9 x 24 inches
• Weight: 58 POUNDS
