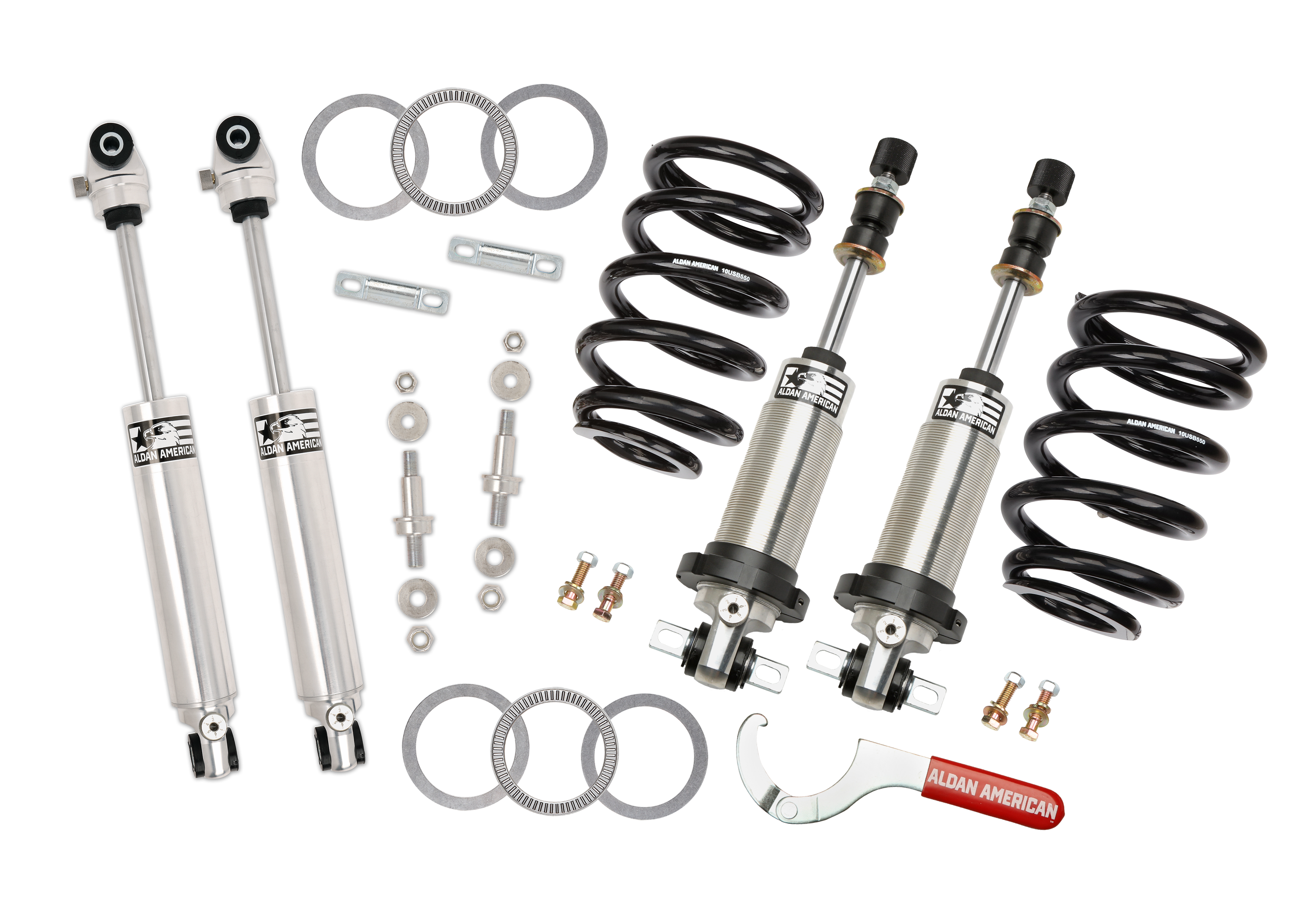

Aldan American Suspension Package GM Track Comp Series Suspension Kits - 300393

We offer dozens of universal coilover and shock absorbers with various mounts, valving and ride-height options. These are great for custom chassis and custom suspensions like 4-links and IFS kits. For vehicle specific applications, we offer thousands of combinations of 100% bolt-on solutions to upgrade to adjustable coilovers and shocks. Other shock accessories like control arms, sway bars, thrust bearings and more are available from Aldan American.

• Aldan Springs are made from steel sourced and manufactured in the U.S.A.

Attributes:

• Brand Name: Aldan American
• GTIN: 00799793165149
• Adjustable Mounting Bracket Included: No
• Adjustable Valving: Yes
• Body Diameter: 2
• Bushing Color: Black
• Bushing Material: Polyurethane
• Coilover Springs Included: Yes
• Collapsed Length: 10.750 in. front, 12.750 in. rear
• Crossmember Included: No
• Extended Length: 14.300 in. front, 19.500 in. rear
• Gas Charged: Yes
• Hardware Included: Yes
• Internal Design: Twin-tube
• Lower Mount: Bar pin, front; Eyelet, rear
• Notes: Designed for cars running 15-20 in. Wheels. Rear shocks are designed to work with factory rear springs and factory style rear lowering springs, stock height to 2.0" lowered. Rear springs sold separately.
• Number of Valving Selections: 180 Front, 66 Rear
• Shock Body Finish: Natural
• Shock Body Material: Aluminum
• Shocks Included: Yes
• Spring Finish: Black powdercoated
• Spring Rate (lbs/in): 800 lbs./in. Front
• Suspension Height Adjustment: 0.0-2.0 in. Lowered Front
• Threaded Adjustment Range: 5.000 in front
• Upper Mount: Stem, front; Eyelet, rear
• Welding Required: No

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 26 x 16 x 9 inches
• Weight: 40 POUNDS
