Borgeson - Pitman Arm - P/N: 806016 - Steel Pitman Arm Flat 7 In. Between Centers. Fits GM Saginaw 122/525/605 Steering Boxes.

In stock - 4 items available
SKU: BRG-806021
$86.67

Product details

  • Type Steering Pitman Arm
  • Vendor Borgeson
  • SKU BRG-806021
  • Barcode 00843975018355
Description Reviews

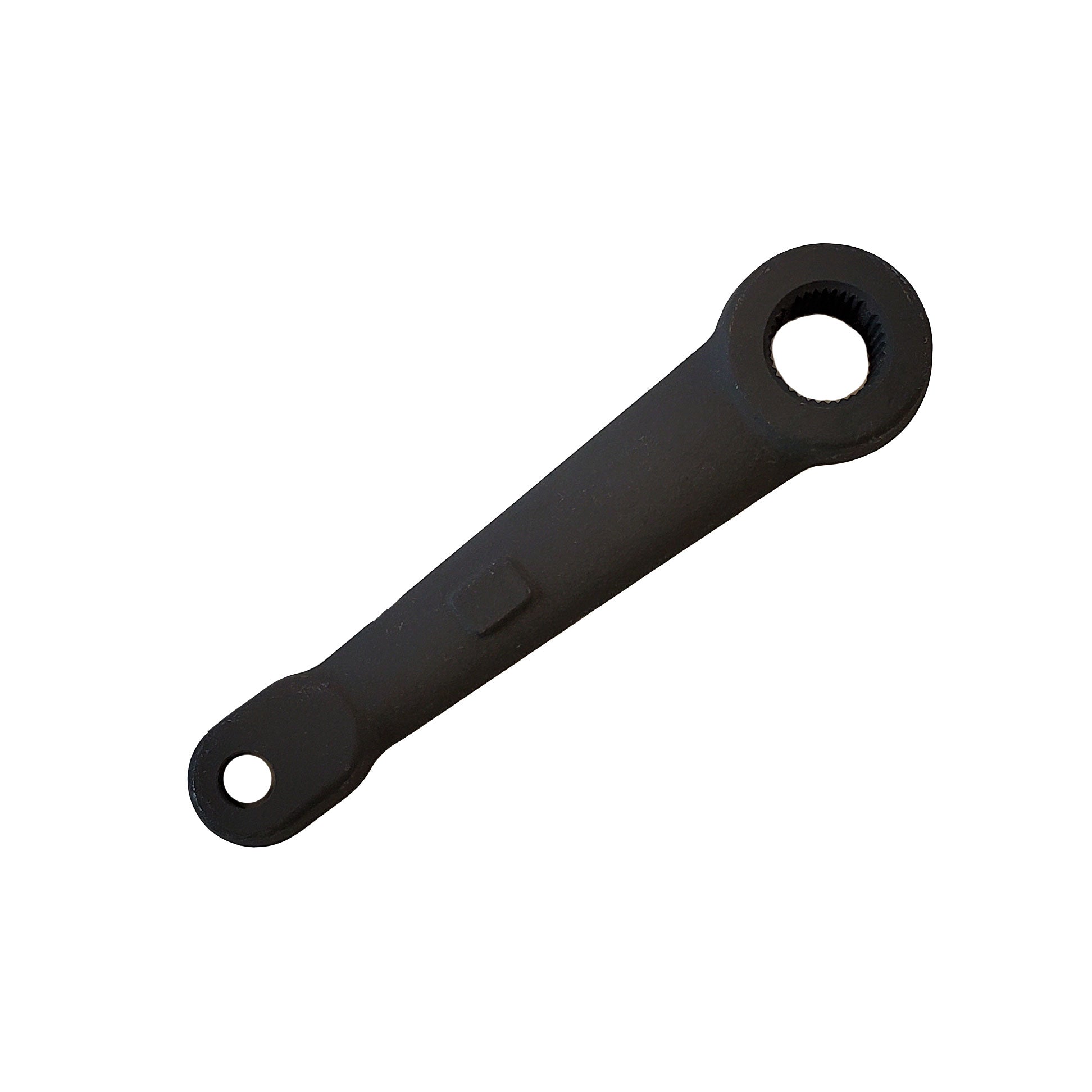

Flat steel pitman arm. Seven inch center to center hole spacing. Fits GM Saginaw 122/525/605 series manual steering boxes with 1-1/8 in. diameter pitman shaft with 32 splines plus four master splines. Provides a reliable connection between the steering gear pitman shaft and drag link with 7 in. length and a flat profile.
  • Provides a reliable connection between the steering gear pitman shaft and drag link.

Attributes:

  • Brand Name: Borgeson
  • GTIN: 00843975018355
  • CA Prop 65 Required: Y
  • Castle Nut Included: No
  • Color: Natural Steel
  • Cotter Pin Included: No
  • Dust Boot Included: No
  • Finish: Natural Steel
  • Grade Type: Standard Replacement
  • Grease Fitting Included: No
  • Greaseable: No
  • Length Center Bore To Center Bore: 7.00
  • Material: Steel
  • Pre-Greased: No
  • Spline Quantity: 32
  • Steering Shaft Diameter: 1.125

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 9 x 3 x 1 inches
  • Weight: 2.06 POUNDS
