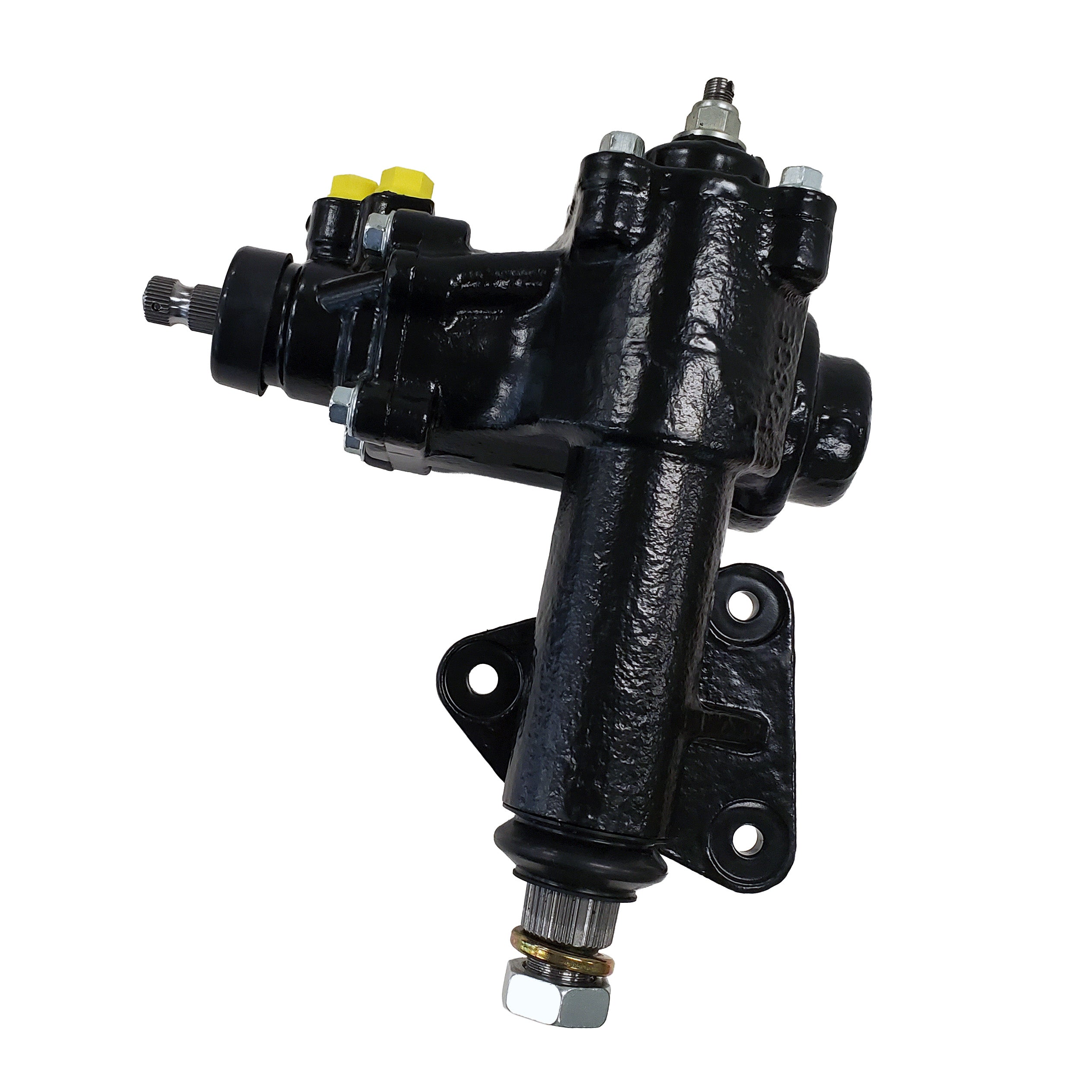

Borgeson - Power Steering Box - P/N: 800158 - Power Steering Conversion Box For 1963-1982 Chevy Corvettes. Modern Power Steering Box With A 14:1 Ratio..

Borgeson offers an integral power steering conversion for your 1963-1982 Classic Corvette. The Borgeson conversion box is an all new manufactured integral power steering gearbox. This is a modern quick ratio steering box with fewer turns of the wheel from lock to lock and a great modern steering feel. Borgeson has manufactured this box to bolt directly to the factory mounting location and to fit the stock pitman arm. A new rag joint will be required for connection to the stock column. The factory column will need to be collapsed or shortened 1-2" for clearance of conversion box. A drag link adapter will also be required for cars with factory style power steering. Eliminate your leaky control valve and feel the road with a new integral power steering conversion from Borgeson.

• True modern power steering feel and feedback, quick steering ratio with fewer turns lock-to-lock. Eliminates the stock leak prone control valve and slave cylinder.

Vehicle Specific

• Chevrolet: Corvette 1963 - 1982

Attributes:

• Brand Name: Borgeson
• GTIN: 00843975018485
• CA Prop 65 Required: Y
• Color: Black
• Finish: Painted
• Housing Material: Cast Iron
• Inlet Port Diameter: 16
• Input Shaft Diameter: 17
• Input Shaft Spline Quantity: 36
• Outlet Port Diameter: 16
• Output Shaft Diameter: 1.125
• Output Shaft Spline Quantity: 32
• Splined Input Shaft: Yes
• Total Turns Lock To Lock: 3.5

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 14 x 6 inches
• Weight: 27.9 POUNDS
