Detroit Speed 071543DS QuadraLink Torino Flange 9in. Housing Powder Coated 82-04 S10

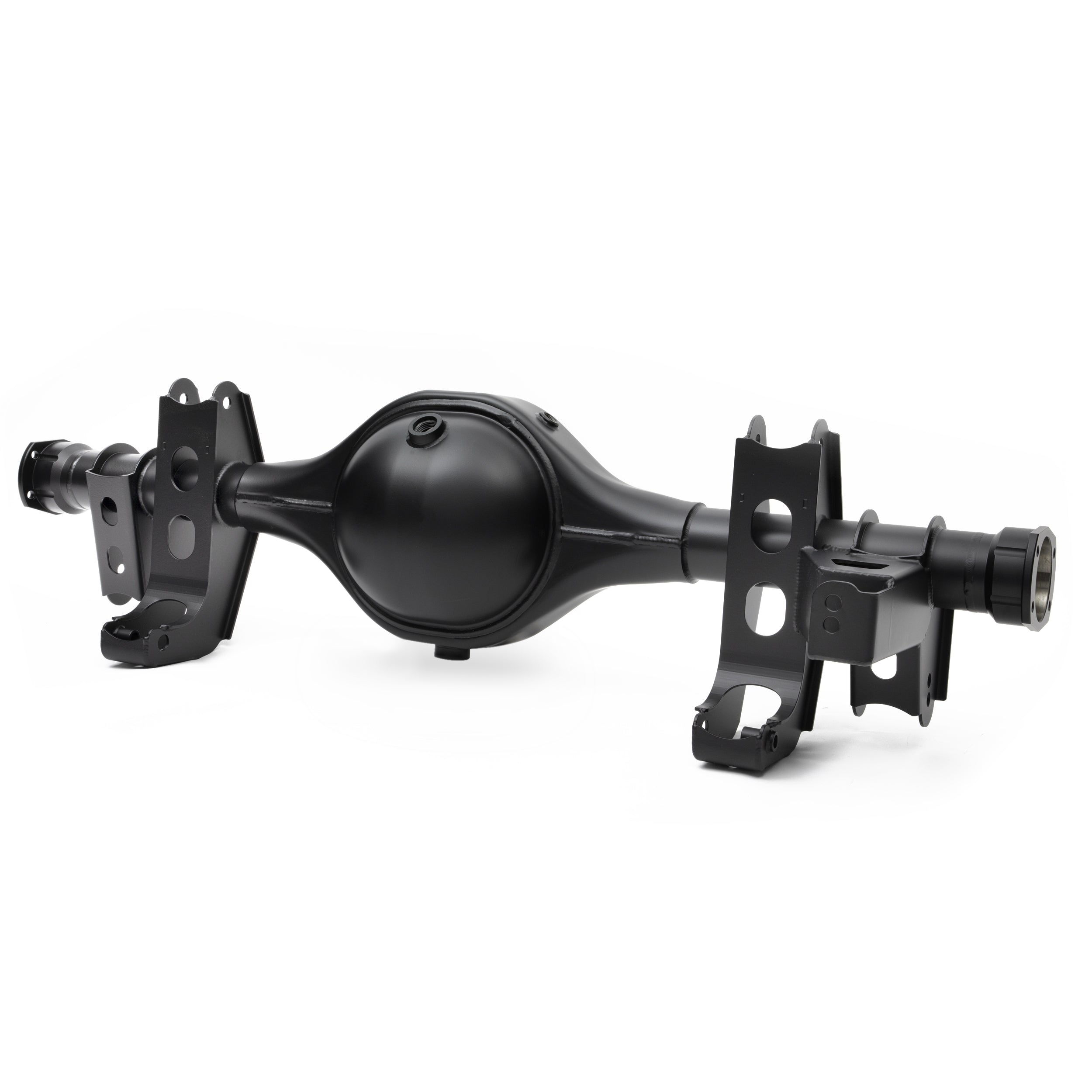

Detroit Speed’s Ford 9" axle housing is purpose-built for high-horsepower S10 builds and is the ideal foundation for a Quadralink rear suspension upgrade. Engineered for strength, precision, and easy integration, this black powder coated housing delivers the durability and performance serious builders demand—without the hassle of custom fabrication. HEAVY-DUTY CONSTRUCTION Designed to handle serious power, this housing features a round back design, 3” x .218 wall tubes, billet Torino ends, and full TIG-welded construction. From street use to track launches, it’s built to take the hit and keep going. PURPOSE BUILT FOR THE QUADRALINK Don’t hassle with fab work. Detroit Speed can deliver a housing with Quadralink brackets TIG welded in place, so you’re ready to bolt in and go. It’s the easiest way to ensure proper geometry and bracket alignment for your S10 suspension upgrade. FEATURES AND BENEFITS • Made in the USA • Heavy duty round back housing • TIG welded 3" tubes with .218 wall thickness • Billet Torino Ends • QUADRALink brackets are TIG welded. • Axle vent • Fill and drain plugs included • Available in satin black powder coat • Accepts 2.5" offset rear brake packages from AP, Baer or Wilwood FITMENT NOTES • Fits 1982–2004 Chevrolet S10 / GMC Sonoma (2WD) • Designed for use with Detroit Speed Quadralink rear suspension system • Housing only – Axles & center section sold separately

• Made in the USA
• Heavy duty round back housing
• TIG welded 3" tubes with .218 wall thickness
• Billet Torino Ends
• QUADRALink brackets are TIG welded
• Axle vent
• Fill and drain plugs included
• Available in satin black powder coat
• Accepts 2.5" offset rear brake packages from AP, Baer or Wilwood

Attributes:

• Brand Name: Detroit Speed - Archived
• GTIN: 00806990233899
• Manufacturer Part Number: 071543DS
• UPC: 806990233899

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 60 x 18 x 15 inches
• Weight: 86 POUNDS
