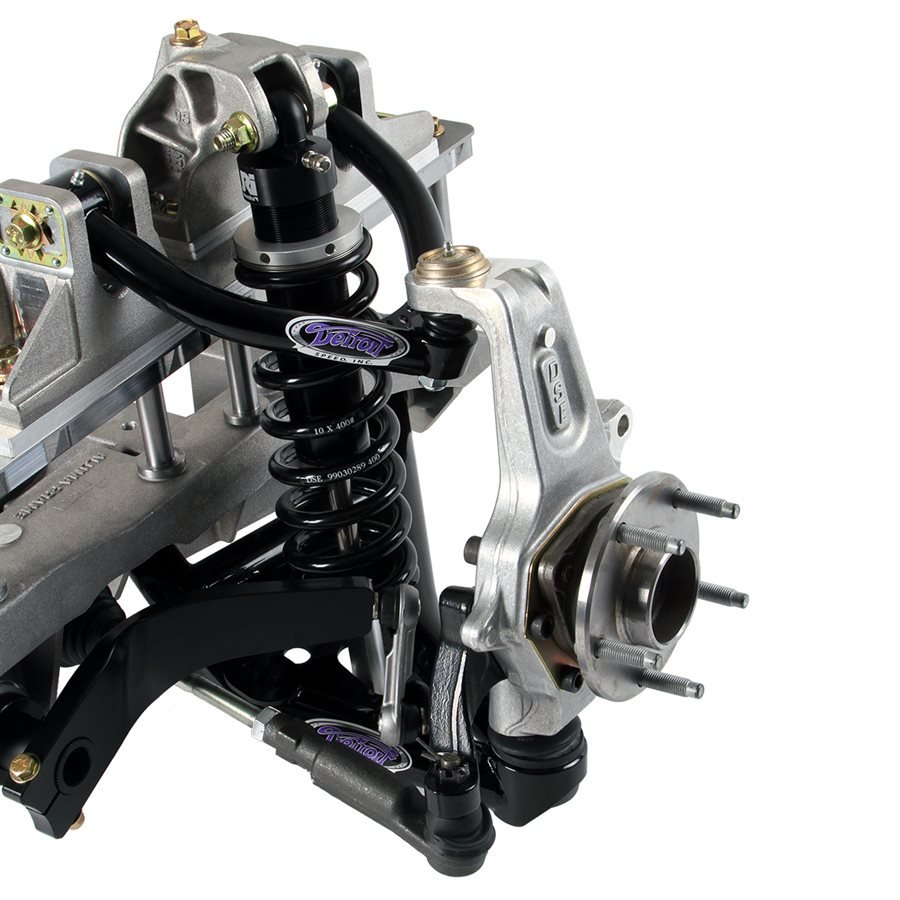

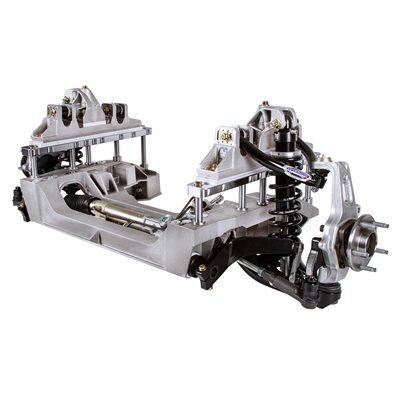

Detroit Speed Aluma-Frame Front Suspension System - Double Adjustable Shocks

All aluminum front suspension system for 1964.5 -1970 Mustangs featuring Detroit Speed's unique suspension geometry with 6" of suspension travel for the ultimate in ride and performance. Spring Rate: 400lbs/in Spring Free Length: 10inDouble Adjustable w/ Remote Canister: This DSE/JRi shock has all of the qualities of the double adjustable shock and incorporates a gas charged bladder to provide high frequency and low speed dampening control. Remote Canister Shock Mounts: These billet aluminum shock mounts are manufactured for securing your remote shock canisters to the vehicle. The shocks mount with two 1/4"-20 x 1/2" button head screws.

• Unique cast aluminum cradle and mounting components resulting in a high strength to weight ratio and precise fitment
• Retains stock framerails and inner fenders and only requires a small amount of fabrication for installation
• Engine mount kits available for Ford small block Windsor engines, Ford FE big block engines, Ford 4.6, 5.4, and Coyote 5.0 modular engines including the Boss 302
• as well as, GM LS engines
• Spanner Tool for easy shock adjustments
• Forged Detroit Speed Spindle
• Composite Anti-Roll Bar Bushings
• Tubular upper and lower control arms
• 'Detroit Tuned' rack and pinion steering
• Detroit Speed/JRi aluminum coilover shocks with 'Detroit Tuned' valving available in fixed valve, single adjustable, double adjustable, or remote canister double adjustable versions
• Torrington Bearings
• Splined integrated style Anti-roll bar
• Detroit Speed's Speed-LIGN caster/camber adjusters allow a wide range of adjustability to be made precisely and quickly without needing any additional shims
• Utilizes aluminum uprights and hub packs with a Ford 5" x 4-1/2" bolt pattern
• Can fit up to P265/35R18 tires on a 9" rim on early models and up to P295/35R18 tires on a 10.5" rim on later models

Attributes:

• Brand Name: Detroit Speed - Archived
• GTIN: 00090127166994
• 81813: Detroit Speed
• 81839: 1 in. +/- 1 in.
• 3294120: California Proposition 65
• 3294145: 5
• 3294148: Aluma-Frame Subframe
• 3602290: Yes
• 5859302: -0.5 degrees +/-0.2 degrees
• 5859303: 8 degrees +/- 0.5 degrees
• 5859304: 0 degrees +/- 0.1 degrees
• 5859307: 27 degrees
• 5866059: .070 in.
• 5866060: 6 in.
• Bolt Pattern: 5x4.5
• Finish: Aluminum
• Shock Type: Double Adjustable Remote

Extended Information:

• Country of Origin:
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 76 x 48 x 30 inches
• Weight: 300 POUNDS
