Detroit Speed QuadraLink Rear Suspension Kit Without Axle Brackets - Base Shocks

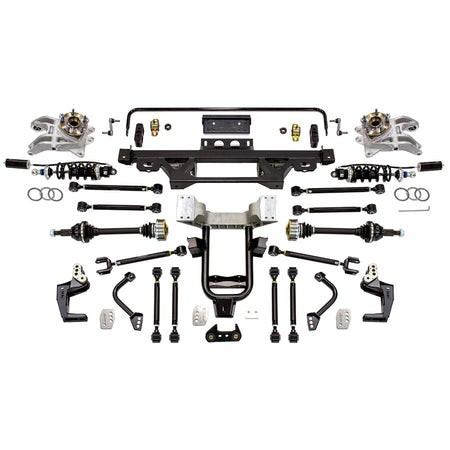

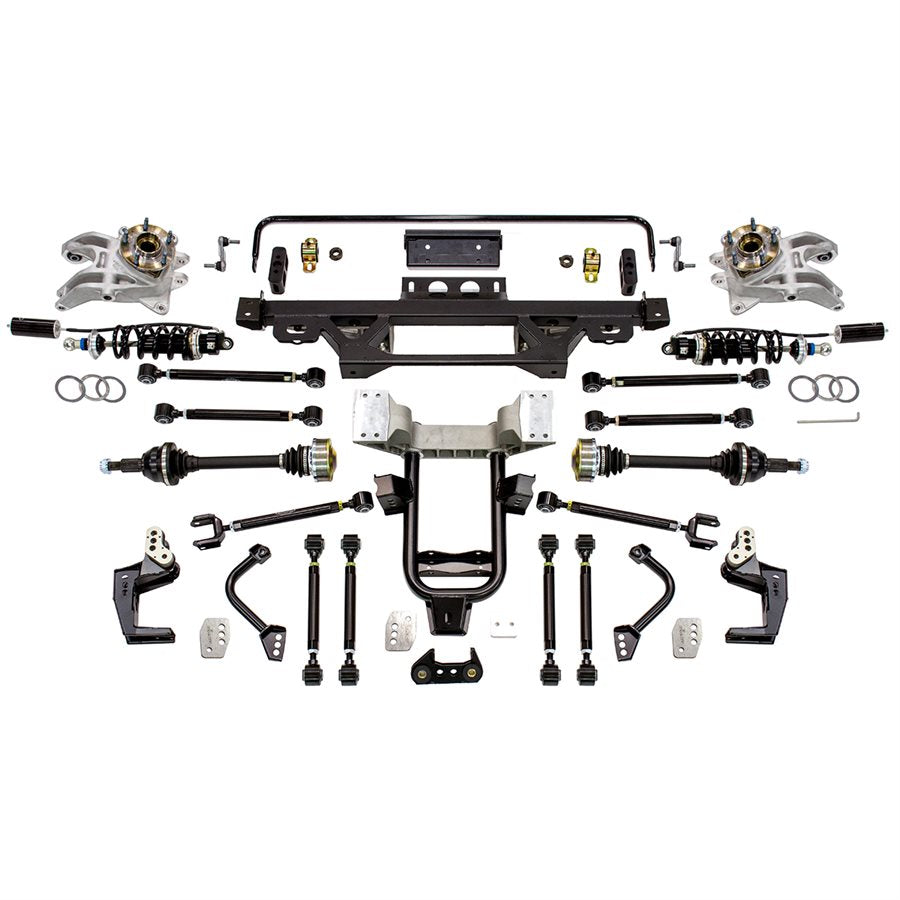

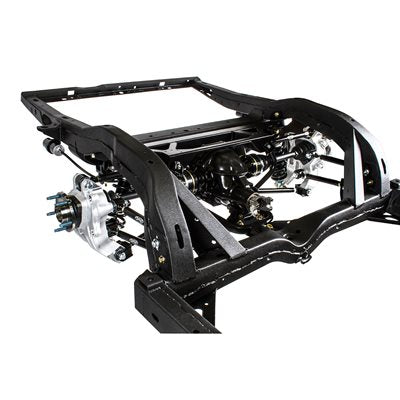

The DECAlink™ Independent Rear Suspension features no compromises and exclusive Detroit Speed suspension geometry for superior handling and ride quality. The IRS utilizes modern CV axle shafts and hub bearings, keeping suspension loads from being transmitted through the axle shafts. The DECAlink™ IRS works with an original 17-spline differential assembly with upgrades to 30-spline or a Hammerhead 12-bolt differential. No body modifications are required on 1968-79 models while the suspension is offset inboard for additional tire clearance. All suspension link lengths are adjustable and the kit has adjustments for rear anti-squat geometry and roll center height. The suspension points are hard mounted to eliminate stock rubber mounted suspension deflection.It comes with forged in the USA Detroit Speed aluminum uprights and a two-piece cast aluminum/steel cradle assembly which eases differential housing removal. DSE/JRi "Detroit Tuned" Coilover shocks/springs allow spring rate tuning and ride height adjustments. The kit includes a rear anti-roll bar and uses OEM cross-axis pivot bushings at all pivot points. The kit also includes Torrington bearings and a spanner tool for easy spring height adjustments.Remote Canister Monotube Double Adjustable Shock This DSE/JRi shock has all of the qualities of the double adjustable shock and incorporates a gas charged bladder to provide high frequency and low speed dampening control.Remote Canister Shock MountsThese billet aluminum black anodized shock mounts are manufactured for securing your remote shock canisters to the vehicle. The shocks mount with two 10"-24 x 1/4" buttonhead screws.Rear Spring Rate: 550lbs/inRear Spring Free Length: 8in

• Detroit Speed aluminum uprights - forged in the USA
• Cast Aluminum & Steel Cradle Assembly
• "Detroit Tuned" coilover shocks
• Coilover springs
• Rear sway bar
• Torrington bearings

Attributes:

• Brand Name: Detroit Speed - Archived
• GTIN: 00090127170199
• 81813: Detroit Speed
• 81839: 3" +/-1.0"
• 111544: 30 Spline
• 3294120: California Proposition 65
• 3294145: 5
• 3294148: Decalink Kit
• 3602290: Yes
• 3602302: 600
• 5859302: -0.3° +/-.2°
• 5859304: 0° +/-.1°
• 5866060: 6"
• Shock Type: Double Adjustable Remote

Extended Information:

• Country of Origin:
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 48 x 30 inches
• Weight: 269 POUNDS
