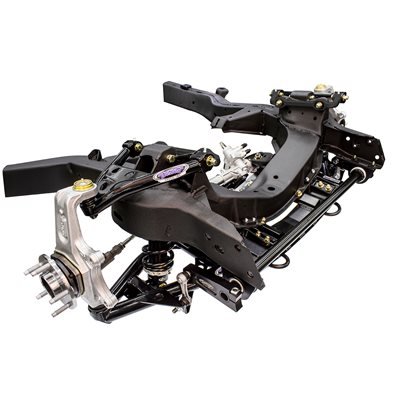

Detroit Speed X-Gen 595 Front Suspension Module - Without Springs/Shocks

The new Detroit Speed C2/C3 SPEEDRAY™ front suspension has no compromises and exclusive Detroit Speed suspension geometry for superior handling and ride quality. It is available as a 100% bolt-on system or with a small amount of fabrication for a competition coilover option that allows faster spring changes. The system features 'Detroit Tuned' quick ratio power rack and pinion steering along with forged in the USA Detroit Speed aluminum uprights. The bolt-on powder coated cradle assembly improves suspension geometry, provides rigid mounting for the rack and pinion, and includes integrated tie down eyelets. DSE/JRi 'Detroit Tuned' Coilover shocks/springs allow for spring rate tuning and ride height adjustment. It also includes a splined sway bar with aluminum arms, composite bushings, powder coated tubular upper and lower control arms with Delrin™ bushings, forged offset upper control arm mounting brackets with caster tuner bushings to optimize suspension geometry and provide clearance for Gen V LT4 engines. The kit also includes Torrington bearings and a spanner tool for easy spring height adjustments. The body and engine do not need to be removed for installation of the SPEEDRAY™ front suspension. Double Adjustable Shock: This is the most race winning shock JRi has in its stable. With its two independent adjustments and the enormous range of adjustment it can be set to the exacting demands of the driver and performance levels required while providing excellent ride quality on the street. Spring Rate: 550lbs/in Spring Free Length: 8in

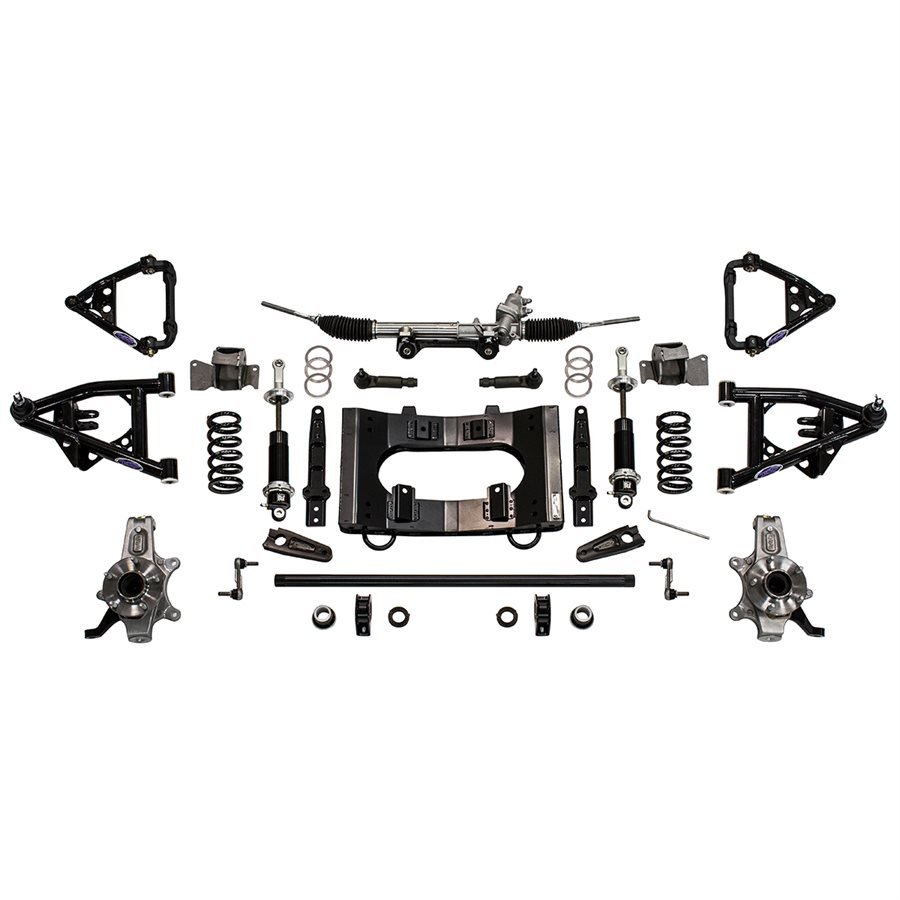

• TIG welded tubular upper and lower control arms
• Aluminum body coilover shocks with "Detroit Tuned" valving
• Coilover springs
• "Detroit Tuned" power rack and pinion steering
• Integrated splined sway bar with composite bushings
• Control arm cross shafts with caster tuner bushings
• Forged aluminum Detroit Speed spindles

Attributes:

• Brand Name: Detroit Speed - Archived
• GTIN: 00090127167151
• 60131: Small Block/LS
• 81813: Detroit Speed
• 81839: 7.6" +/-1.0"
• 3294120: California Proposition 65
• 3294145: 5
• 3294148: SpeedRay Subframe
• 3602290: Yes
• 5859302: -0.5° +/-.2°
• 5859303: 7.5° +/-.5°
• 5859304: 0° +/-.1°
• 5866026: 5.2
• 5866029: Fabricated
• 5866041: 27.5°
• 5866054: 2
• 5866060: 6"
• Finish: Powdercoated
• Shock Type: Double Adjustable
• Steering Ratio: 13:1

Extended Information:

• Country of Origin:
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 180 POUNDS
