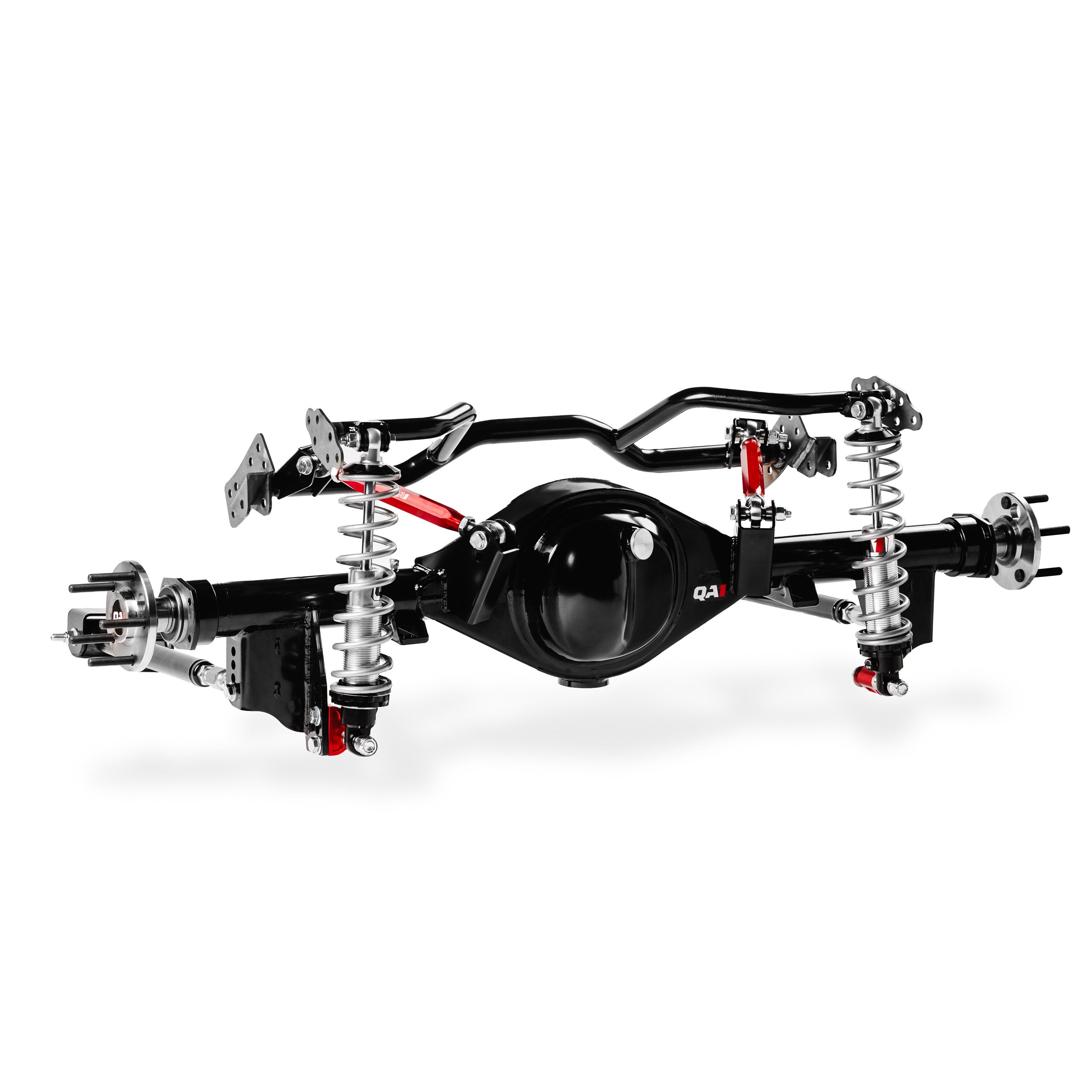

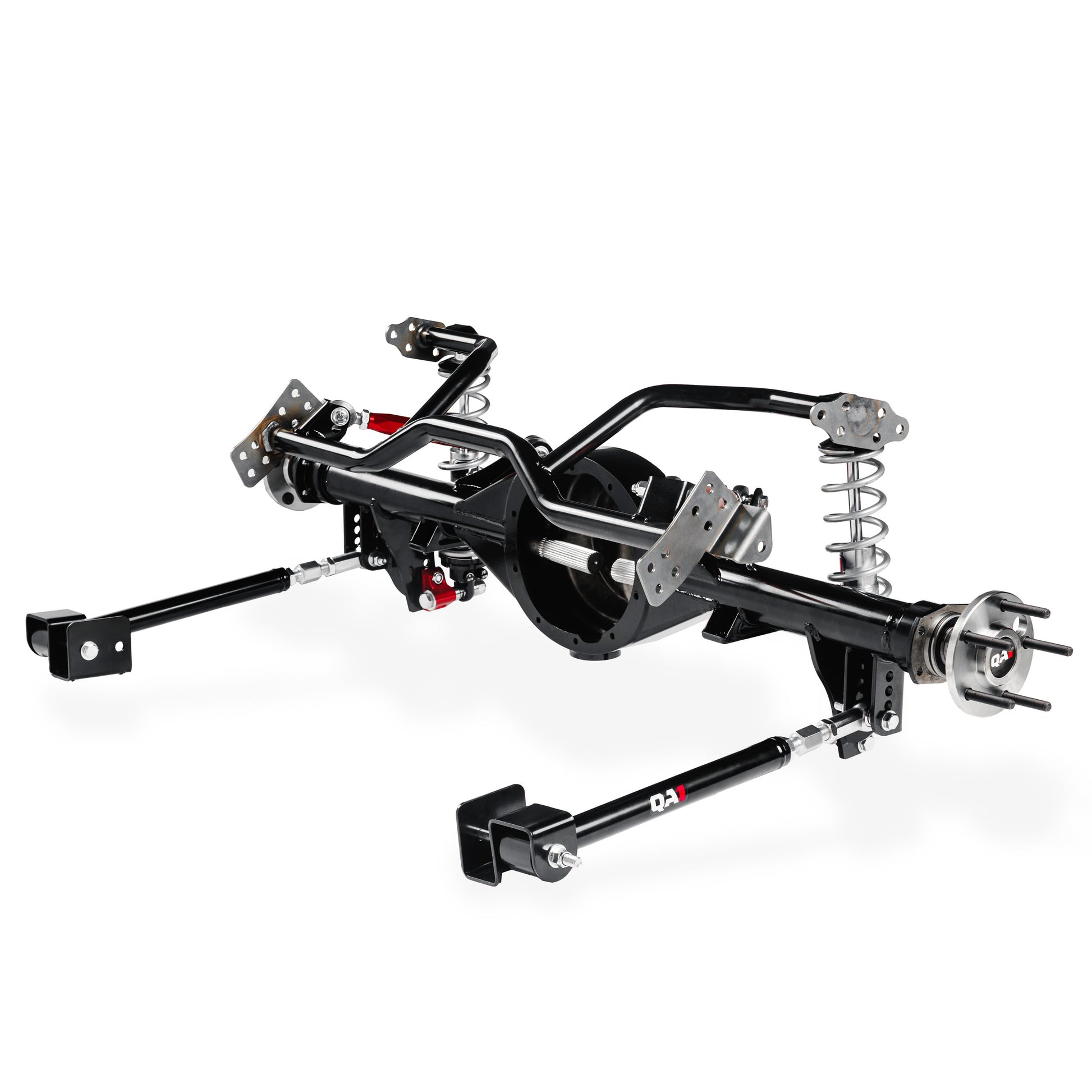

Upgrade your classic Mustang’s rear suspension with QA1’s complete 4-link system, featuring a custom QA1 9” rear housing. Designed specifically for 1964–1966 Mustangs, this all-in-one solution delivers modern handling, improved traction, and the strength to handle serious power. Whether you’re building a street-driven restomod or a pro-touring performer, this kit is built to transform how your Mustang drives and feels. MODERN HANDLING, CLASSIC FIT QA1’s triangulated 4-link replaces the factory leaf springs with a fully adjustable, geometry-correct rear suspension system. It dramatically improves traction, cornering, and ride quality by eliminating axle wrap and maintaining consistent pinion angle under load. The included QA1 9” rear housing ensures a perfect fit and the durability needed for today’s performance builds. SINGLE ADJUSTABLE COILOVERS This kit includes QA1’s single adjustable shocks, offering 18 clicks of combined rebound and compression adjustment. With one knob, you can easily fine-tune ride comfort and performance for your preferred driving style - from smooth street cruising to spirited cornering. STRONG, RELIABLE, AND READY FOR POWER The included QA1 9” housing features fully formed trailing arm brackets, a fabricated steel center section, and heavy-duty 3” OD axle tubes. Together, they create a rigid foundation capable of handling up to 800 horsepower. Matched 31-spline alloy axles ensure strength and smooth operation mile after mile. RIDE HEIGHT & ADJUSTABILITY Easily dial in your stance with adjustable ride height from factory level to 3” lower. This flexibility lets you fine-tune your Mustang’s appearance and performance without compromising geometry or drivability. EASY INSTALLATION This kit comes complete with everything you need for a straightforward installation - from the housing and brackets to shocks and hardware.
- Application-specific fit for 1964–1966 Ford Mustangs
- Includes drain plug, fill plug, vent port, and jack pad for easy service
- ½" x 3" wheel studs for better fitment with aftermarket wheels
- Durable semi-gloss powder coat finish

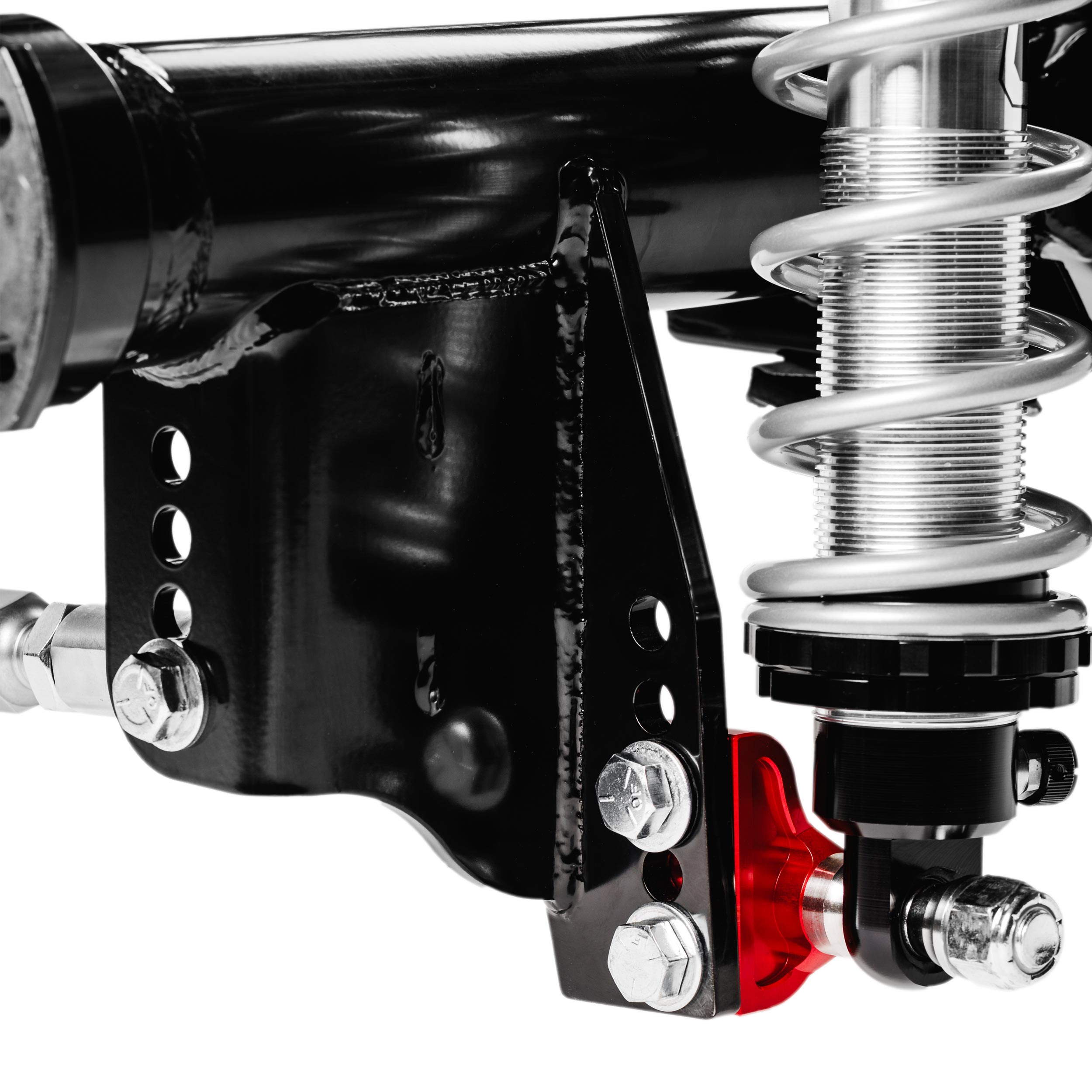

- Weld-in installation with self-fixturing brackets for perfect alignment
- Complete rear suspension system: 9" housing, 4-link, and coilovers
- Single adjustable shocks with 18 settings of rebound/compression control
- Adjustable ride height from stock to –3"
- Eliminates wheel hop and axle wrap
- Heavy-duty fabricated 9" housing rated to 800 HP
- 31-spline 1541H alloy axles rated to 650 HP
- Big Ford "New Style Torino" flanges with 2.5" axle offset
- 5x4.5" bolt pattern for wide wheel compatibility
Attributes:
- Brand Name: QA1
- GTIN: 00806990234650
- Air Adjustable: No
- Bushing Color: Black
- Bushing Material: Polyurethane
- Coil Spring Color: Silver
- Coil Spring Compressed Length: 8
- Coil Spring Insulator(s) Included: No
- Coil Spring Material: Chrome Silicon Alloy
- Coil Spring Relaxed Length: 12
- Grade Type: Performance
- Manufacturer Part Number: R123-130S
- Rear Shocks Compressed Length: 11.13
- Rear Shocks Relaxed Length: 16.38
- Strut Mount Insulator(s) Included: No
- Suspension Type: Spring
- UPC: 806990234650
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 9.5 x 63 x 8 inches
- Weight: 75 POUNDS
