Transform the way your 1967–1970 Mustang performs and feels with QA1’s Level 2 Full Vehicle Handling Kit. This complete suspension system is engineered to deliver modern ride comfort, sharper handling, and precise adjustability - all in a package designed to bolt on with minimal modification. Built for restomods, street cars, and pro-touring builds, this kit brings the kind of handling and control today’s drivers expect, while keeping the timeless character of your classic Mustang. ENGINEERED FOR CONTROL AND COMFORT The 1967–1970 Mustangs were larger and heavier than their early counterparts, and QA1’s Level 2 kit is tuned specifically to handle that extra weight while improving balance and response. The triangulated 4-link rear suspension eliminates the flex and wheel hop associated with leaf springs, while the front coilover system delivers improved geometry and steering feel. HANDLING YOU CAN DIAL IN Double adjustable coilovers allow independent control over compression and rebound, so you can fine-tune ride quality and performance for your exact driving style - whether that’s highway cruising or weekend corner carving. DESIGNED FOR EASY INSTALLATION The front suspension installs directly to factory mounting points, retaining the stock shock towers for a clean, OE-style appearance. The rear 4-link system requires welding, but QA1’s self-fixturing brackets simplify the process, ensuring proper alignment and repeatable geometry.
- Application-specific fit for 1967–1970 Ford Mustangs
- All hardware and brackets included
- Durable powder-coated components for long-lasting performance

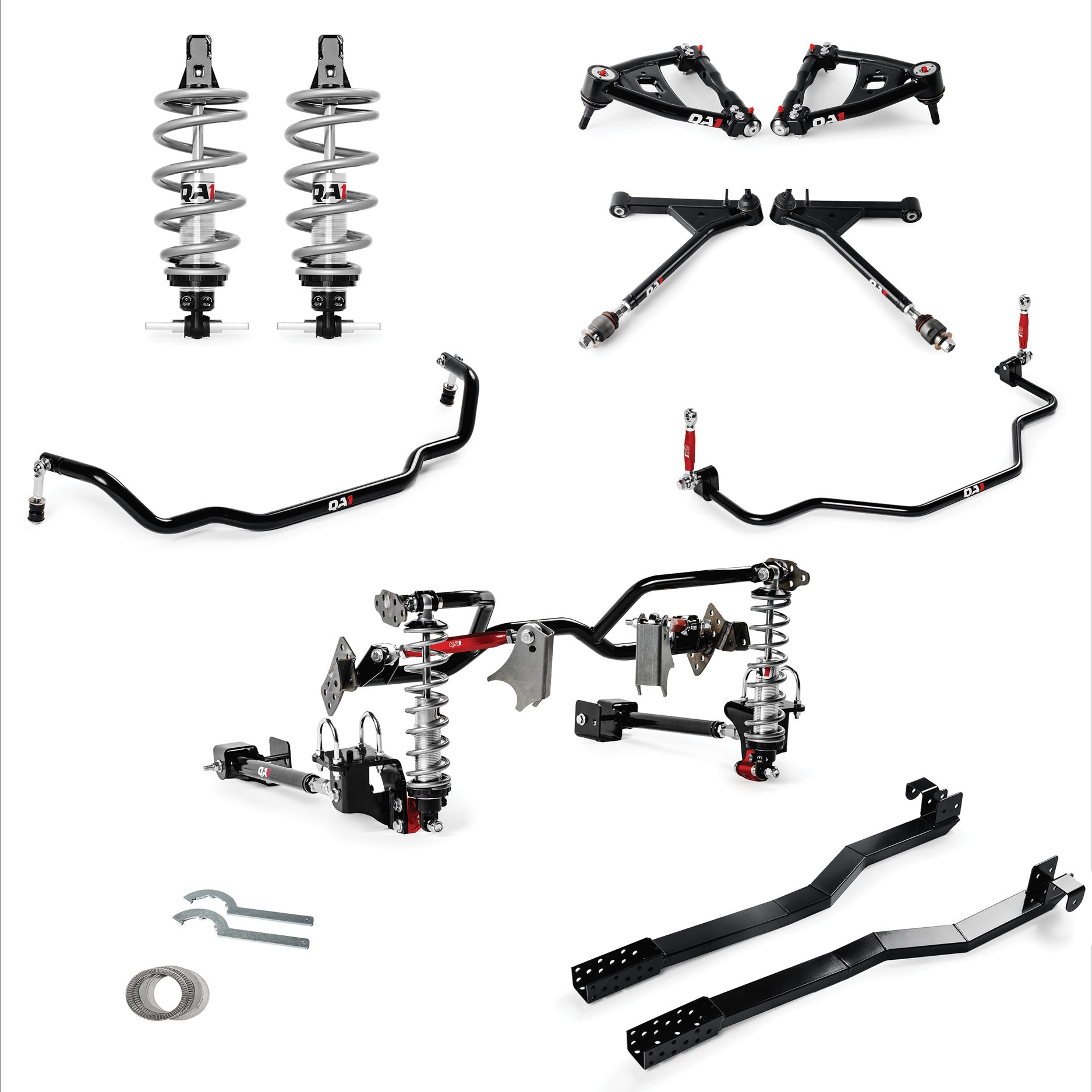

- Complete front and rear suspension system in one package

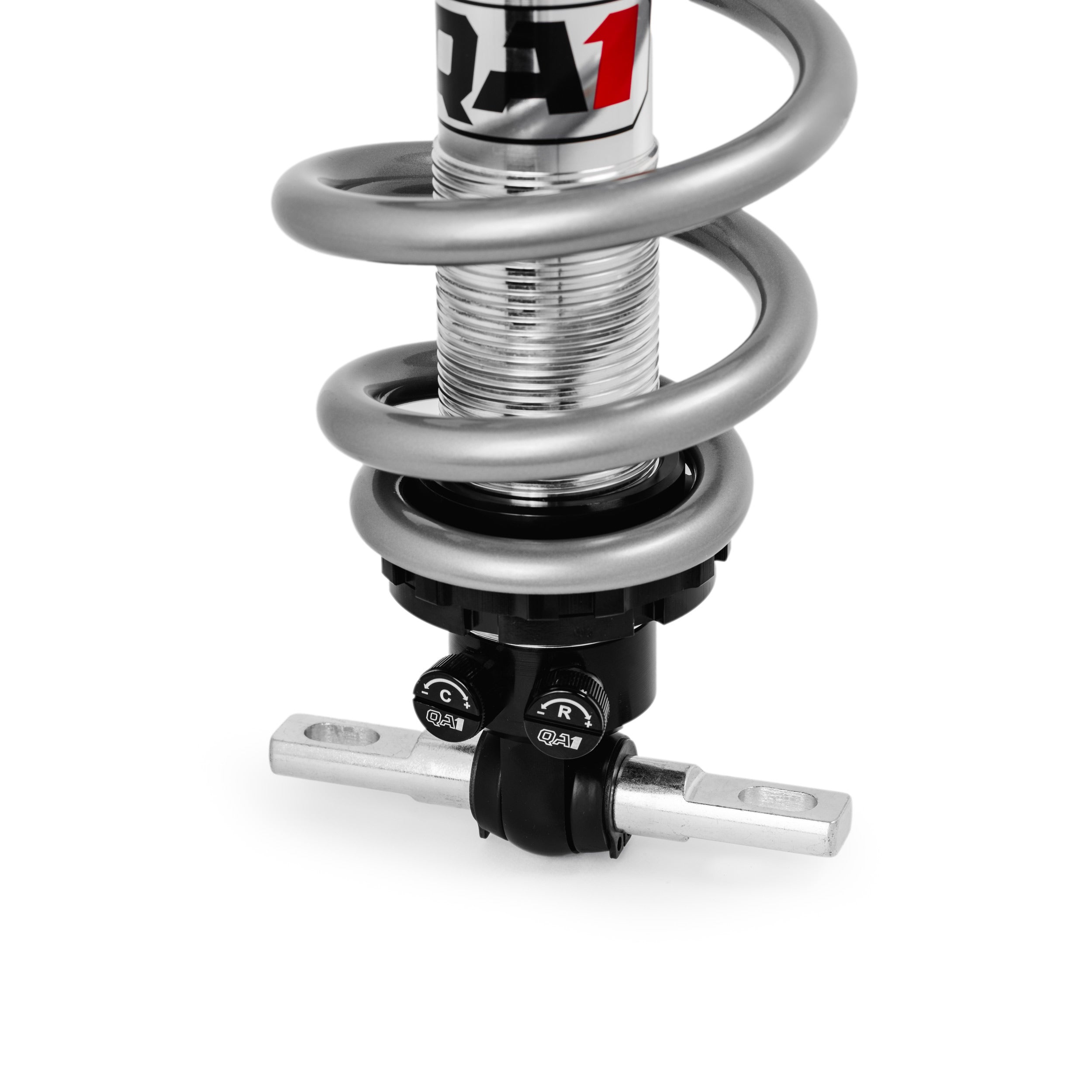

- Double adjustable QA1 Pro Coil shocks allow independent compression and rebound tuning
- Tubular upper and lower control arms improve geometry, strength, and steering precision
- Triangulated 4-link rear suspension replaces leaf springs for improved traction and stability
- Self-fixturing weld-in rear brackets for accurate, repeatable installation
- Adjustable front ride height: stock to –2”
- Adjustable rear ride height: stock to –3”
- Front and rear sway bars reduce body roll and improves cornering response
Attributes:
- Brand Name: QA1
- GTIN: 00806990234742
- Air Adjustable: No
- Bushing Color: Black
- Bushing Material: Polyurethane
- Coil Spring Color: Silver
- Coil Spring Insulator(s) Included: No
- Coil Spring Material: Chrome Silicon Alloy
- Front Shocks Compressed Length: 11.13
- Front Shocks Relaxed Length: 15
- Grade Type: Performance
- Manufacturer Part Number: HK02-FM02
- Rear Shocks Compressed Length: 11.13
- Rear Shocks Relaxed Length: 16.38
- Strut Mount Insulator(s) Included: No
- Suspension Type: Spring
- UPC: 806990234742
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 9.5 x 4 x 9.125 inches
- Weight: 40 POUNDS
