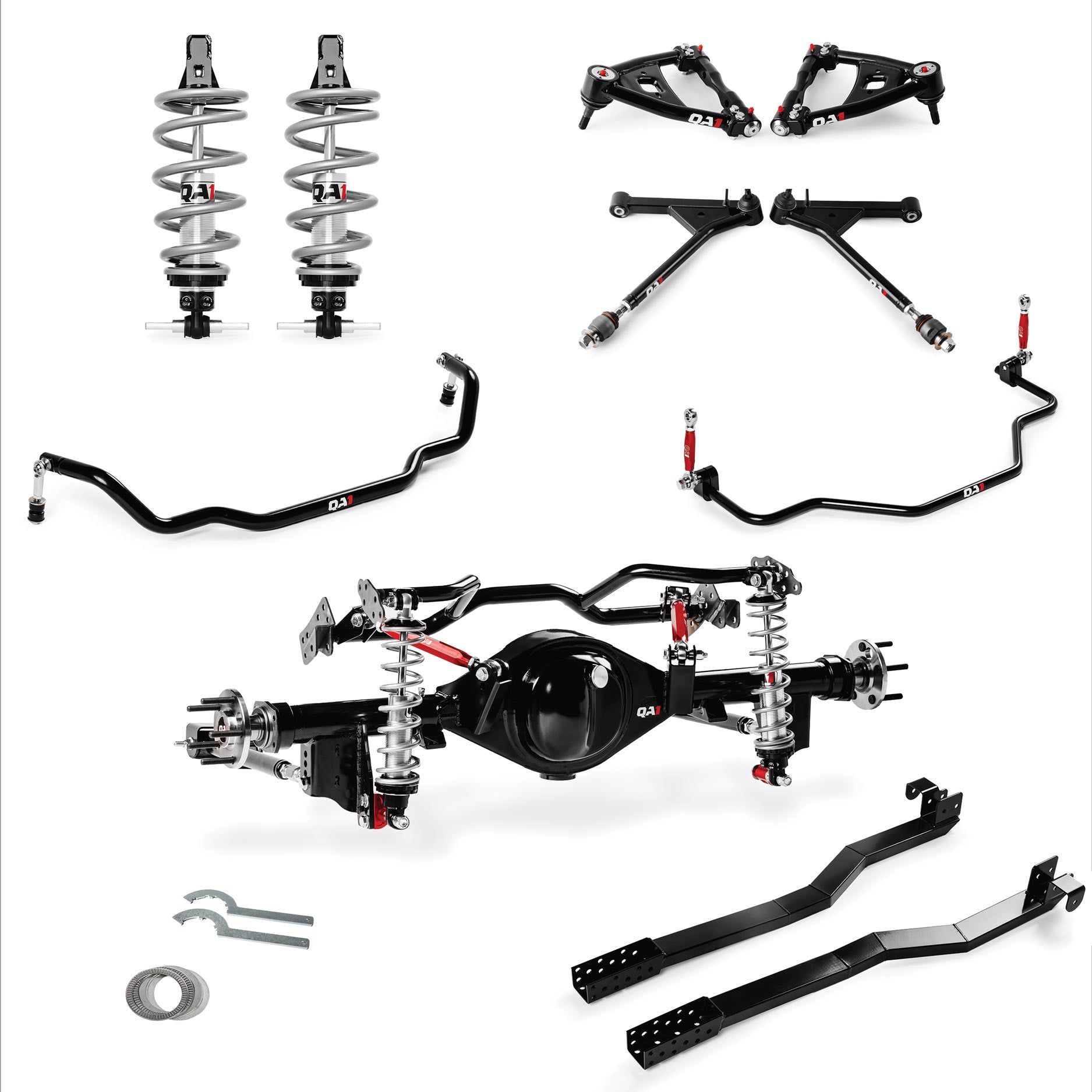

Upgrade your classic Mustang’s ride, handling, and stance with QA1’s Level 2 Full Vehicle Handling Kit. Engineered specifically for 1967–1970 Mustangs, this all-in-one system replaces factory suspension with modern coilovers, tubular control arms, a rear 4-link, and a QA1 9” housing — everything you need to transform your car into a refined, street-ready performer. MODERN HANDLING FOR CLASSIC MUSCLE Factory suspension setups simply can’t keep up with today’s power or driving expectations. QA1’s modern geometry and tunable coilovers deliver flatter cornering, better traction, and a smoother ride. The included 9” housing integrates directly with QA1’s triangulated 4-link, creating a rigid, unified rear suspension that’s built to handle power while keeping your Mustang comfortable and composed. HANDLING YOU CAN DIAL IN Double adjustable coilovers allow independent control over compression and rebound, so you can fine-tune ride quality and performance for your exact driving style - whether that’s highway cruising or weekend corner carving. BUILT STRONG FOR BIGGER CARS The 1967–1970 Mustangs are larger and heavier than their predecessors, so this kit includes 400 lb/in front springs for ideal balance and support. Combined with QA1’s tubular arms and 4-link rear, you get improved weight transfer, reduced body roll, and a more planted feel through corners. EASY INSTALLATION & SERVICEABILITY QA1’s front suspension bolts directly to factory mounting points, while the rear 4-link includes self-fixturing weld-in brackets that ensure perfect geometry and alignment. The QA1 9” housing arrives ready to install, complete with drain and fill plugs, vent port, and jack pad for simple servicing down the road.
- Application-specific fit for 1967–1970 Ford Mustangs
- Big Ford “New Style Torino” flanges for brake compatibility
- Adjustable front ride height: stock to –2”
- Adjustable rear ride height: stock to –3”
- 5x4.5” bolt pattern compatible with most wheels
- Black powder-coat finish for durability and a clean appearance
- Complete front-to-rear handling package in one kit

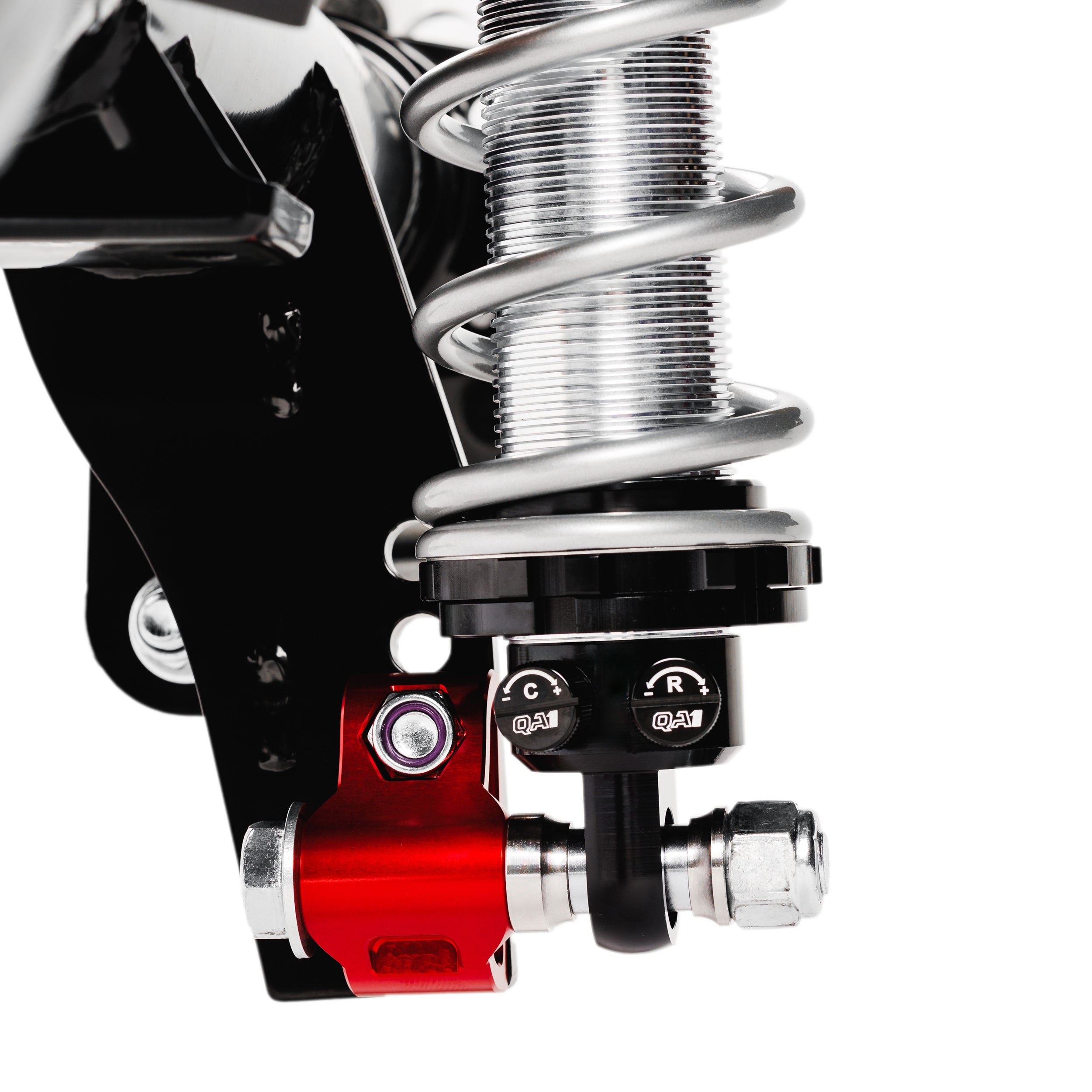

- Double adjustable QA1 Pro Coil shocks allow independent compression and rebound tuning
- 400 lb/in front springs tuned for the heavier chassis
- Tubular upper and lower control arms improve geometry and steering response
- Front and rear sway bars reduce body roll and improves cornering response
- Rear triangulated 4-link eliminates wheel hop and improves traction
- Includes QA1 fabricated 9” rear housing with 31-spline 1541H alloy axles rated to 650 HP
- Heavy-duty 3” OD, ¼” wall axle tubes handle up to 800 HP
Attributes:
- Brand Name: QA1
- GTIN: 00806990234766
- Air Adjustable: No
- Bushing Color: Black
- Bushing Material: Polyurethane
- Coil Spring Color: Silver
- Coil Spring Insulator(s) Included: No
- Coil Spring Material: Chrome Silicon Alloy
- Front Shocks Compressed Length: 11.13
- Front Shocks Relaxed Length: 15
- Grade Type: Performance
- Manufacturer Part Number: HK02-FM02RS
- Rear Shocks Compressed Length: 11.13
- Rear Shocks Relaxed Length: 16.38
- Strut Mount Insulator(s) Included: No
- Suspension Type: Spring
- UPC: 806990234766
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 9.5 x 63 x 9.125 inches
- Weight: 75 POUNDS
