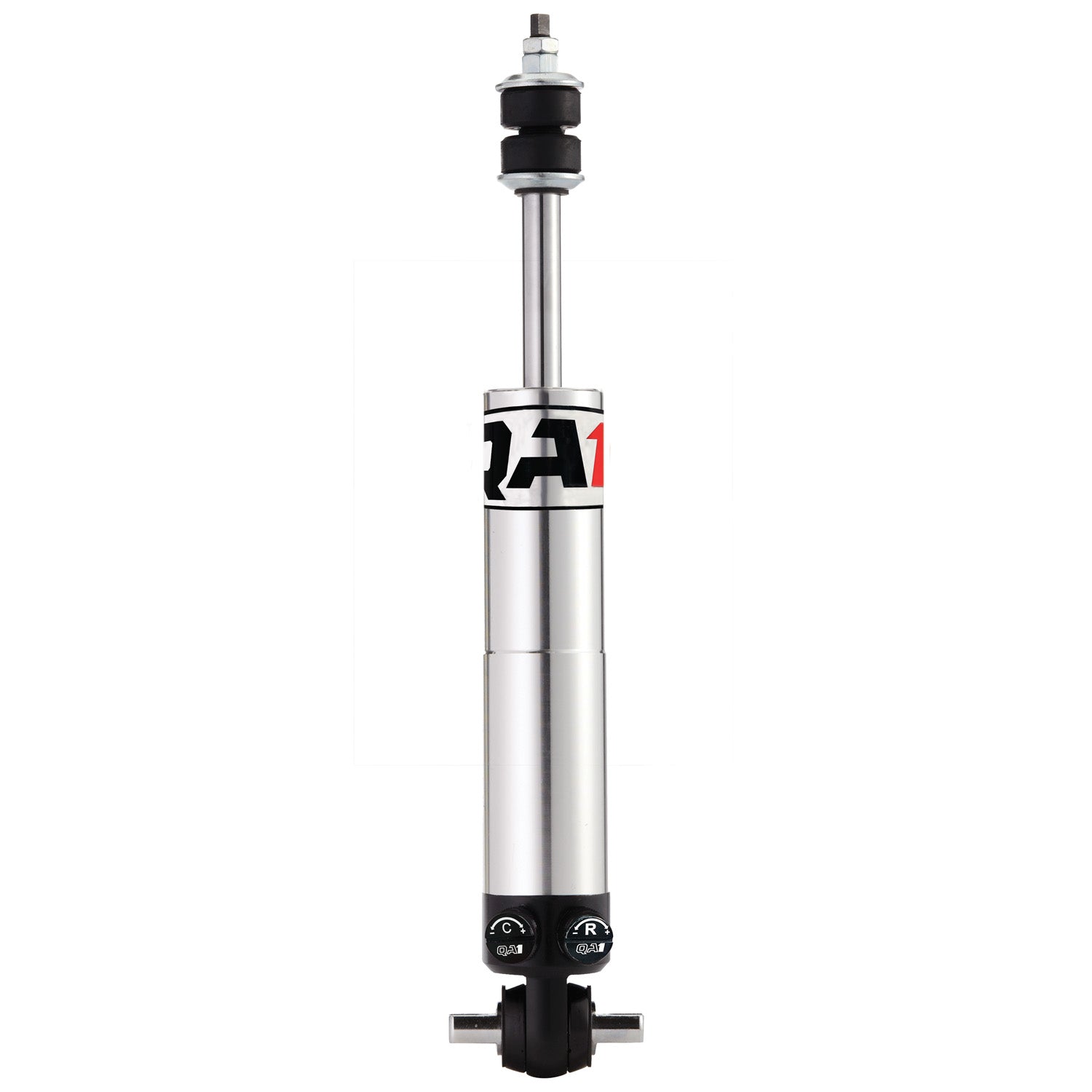

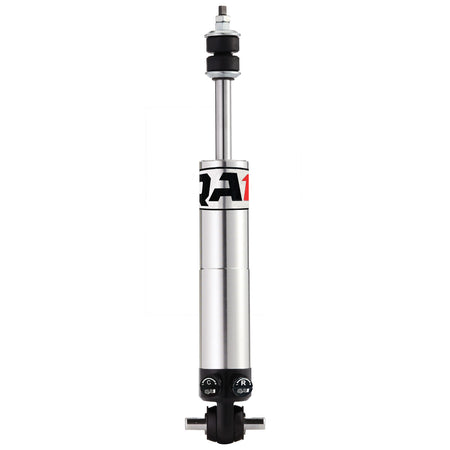

QA1 Shock Absorber TD505

These stock mount adjustable front shocks are available for a variety of GM A and X-Body vehicles, including Camaros, Chevelle/Malibus, Novas, El Caminos, Monte Carlos, Regals, Skylark/Apollos, Cutlass', and Omegas. Available in double, single, Drag ''R'' Series and non-adjustable options, these shocks provide exactly the ride you want, high performance handling and great looks. Made in the USA, these QA1 aluminum shocks are 100% dyno tested and serialized before leaving our Minnesota factory. These lightweight billet aluminum smooth body shocks are made in the USA and offer easy, bolt-in installation. They are 100% dyno tested and serialized and serviceable and rebuildable by QA1 authorized service centers.

• Achieve the ultimate balance of ride quality and performance with independant 18-way adjustment of rebound and compression valving.
• Easy bolt-in installation that works with your factory suspension.
• Limited Lifetime Warranty for peace of mind.
• Proudly made in the USA

Attributes:

• Brand Name: QA1
• GTIN: 00806990060174
• Active or Passive Suspension: Passive
• Adjustable Compression: Yes
• Adjustable Rebound: Yes
• Adjustable Ride Height: No
• Bladder(s) Included: No
• Body Color: Silver
• Body Diameter: 2
• Body Material: Aluminum
• Boot Included: No
• Coil Spring Insulator(s) Included: No
• Color: Natural
• Damping Adjustment Type: Manual
• Dust Shield Included: No
• Finish: Anodized
• Gas Charged: No
• Grade Type: Performance
• Hydraulic Lockout: No
• Internal Construction Type: Twin Tube
• Manufacturer Part Number: TD505
• Mounting Hardware Included: No
• Remote Reservoir: No
• Rod Diameter: 0.625
• Self-Leveling: No
• Shaft Material: Carbon Steel
• UPC: 806990060174

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 19 x 3.75 x 3.5 inches
• Weight: 3.5 POUNDS
