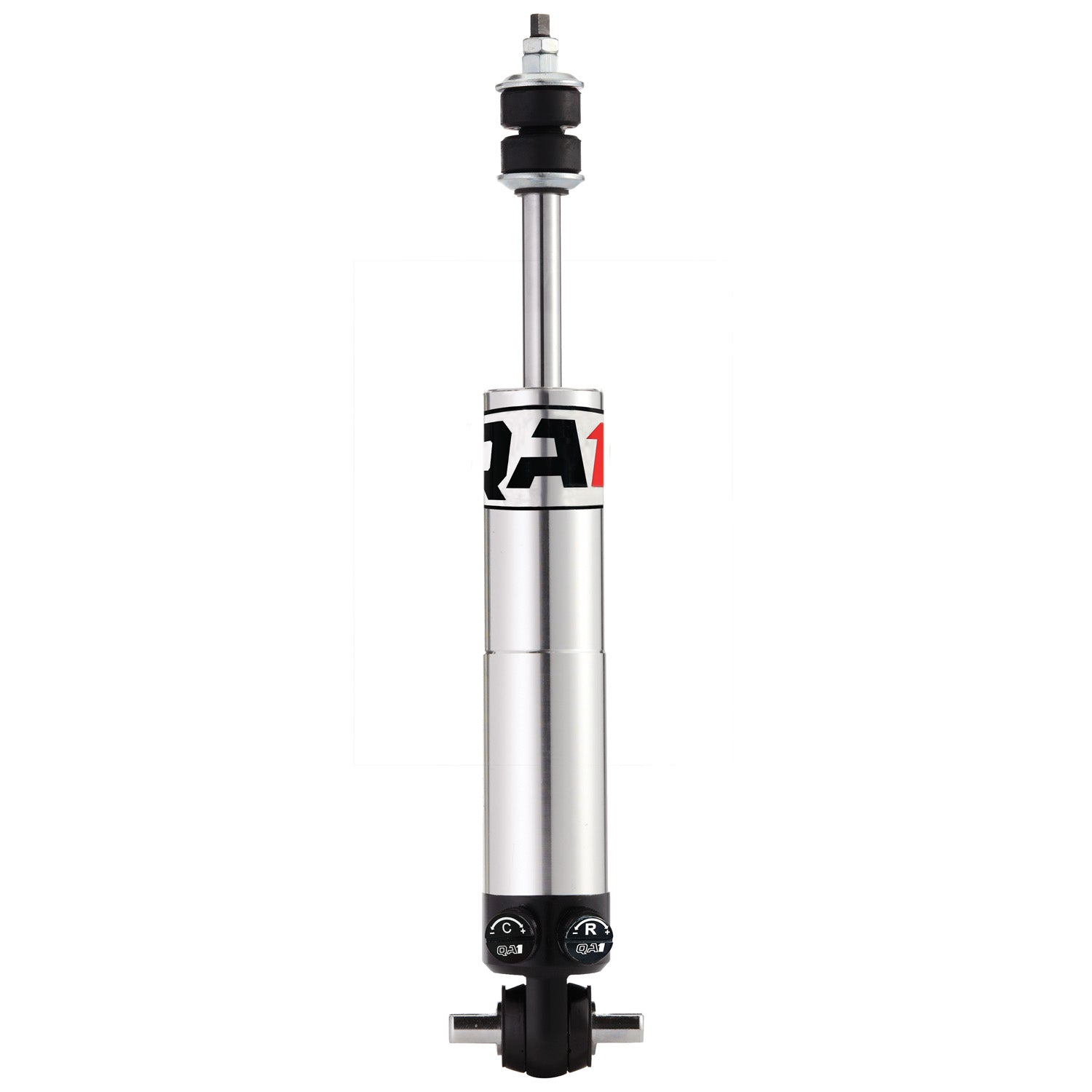

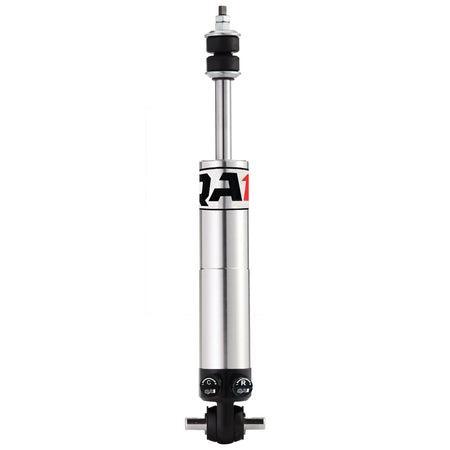

QA1 Shock Absorber TD507

QA1 offers stock mount aluminum adjustable shocks for a variety GM A, B and F-Body vehicles. These shocks are offered for 63-82 Corvettes as well as for Camaro/Firebirds, Chevelle/Malibus, El Caminos, Chevy full size, Impalas, Skylarks, Cutlass/442 and GTO/Tempest/LeMans. Available in double, single, Drag ''R'' Series, non-adjustable and sport valving options, these shocks give you exactly the ride you want, great looks, and high performance handling all at an unbeatable price. These lightweight billet aluminum smooth body shocks are made in the USA and offer easy, bolt-in installation. They are 100% dyno tested and serialized and serviceable and rebuildable by QA1 authorized service centers.

• Achieve the ultimate balance of ride quality and performance with independant 18-way adjustment of rebound and compression valving.
• Easy bolt-in installation that works with your factory suspension.
• Limited Lifetime Warranty for peace of mind.
• Proudly made in the USA

Attributes:

• Brand Name: QA1
• GTIN: 00806990060235
• Active or Passive Suspension: Passive
• Adjustable Compression: Yes
• Adjustable Rebound: Yes
• Adjustable Ride Height: No
• Bladder(s) Included: No
• Body Color: Silver
• Body Diameter: 2
• Body Material: Aluminum
• Boot Included: No
• Coil Spring Insulator(s) Included: No
• Color: Natural
• Damping Adjustment Type: Manual
• Dust Shield Included: No
• Finish: Anodized
• Gas Charged: No
• Grade Type: Performance
• Hydraulic Lockout: No
• Internal Construction Type: Twin Tube
• Manufacturer Part Number: TD507
• Mounting Hardware Included: No
• Remote Reservoir: No
• Rod Diameter: 0.625
• Self-Leveling: No
• Shaft Material: Carbon Steel
• UPC: 806990060235

Extended Information:

• Country of Origin: US
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 19 x 3.75 x 3.5 inches
• Weight: 3.6 POUNDS
