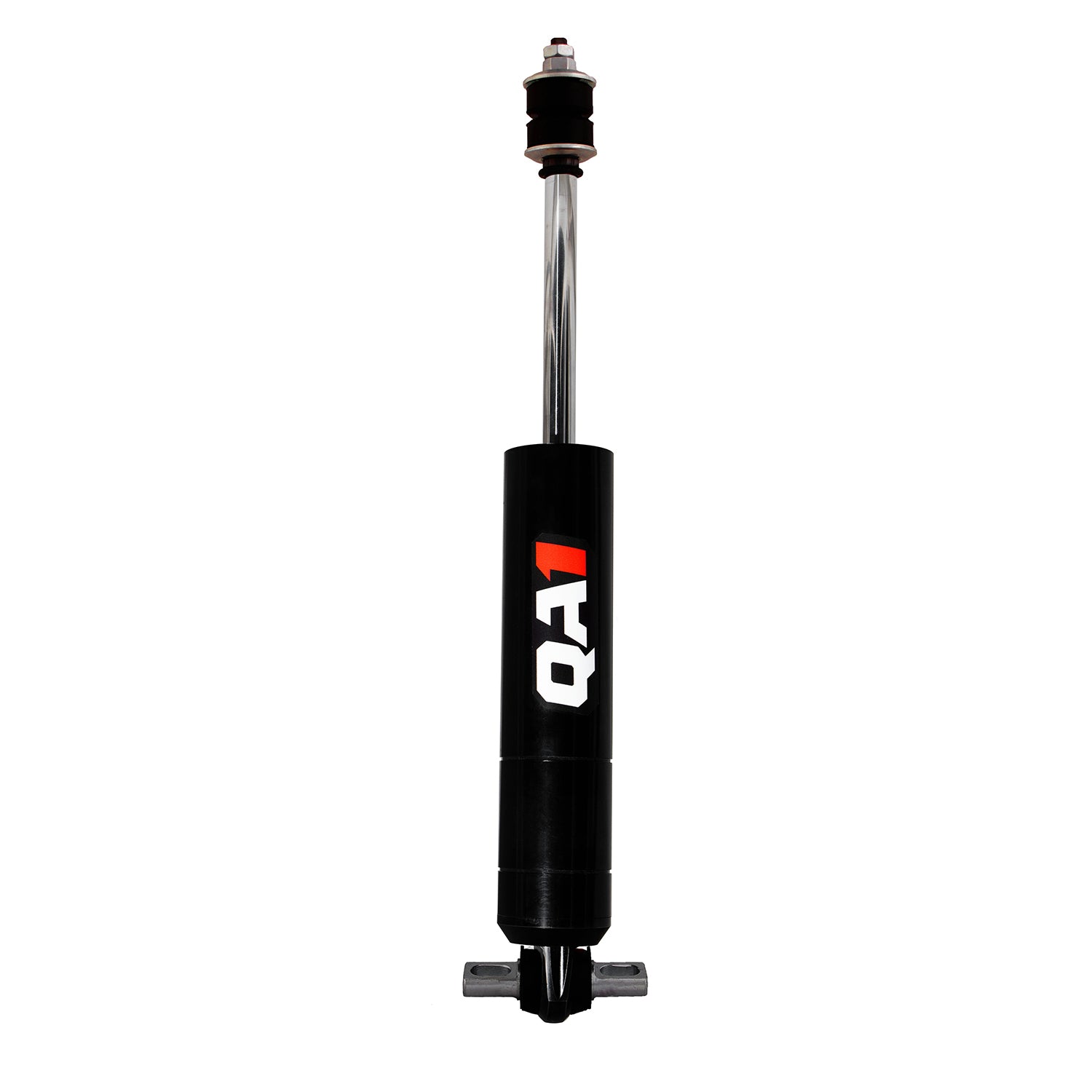

QA1 5Q Series Circle Track Rebuildable Steel Twin Tube Shocks
- 5Q shocks can be re-valved and rebuilt by racers in a matter of minutes using basic tools
- Two-piece bodies make it simple to disassemble and reassemble shocks
- The gland features relief cuts and a hyper screw port, making shocks easy to fill and bleed on assembly.
- Upgraded seal kit minimizes leaks—especially in high-rebound applications
- The compression tube uses a slip fit design to simplify the rebuild process
- 5Q shocks utilize a laser-engraved, black-anodized closure nut to make serial numbers and valving easy to read at the track or in the shop
Attributes:
- Brand Name: QA1
- GTIN: 00806990165381
- Active or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Rebound: No
- Adjustable Ride Height: No
- Body Color: Black
- Body Diameter: 2
- Body Material: Carbon Steel
- Boot Included: No
- Color: Black
- Finish: Zinc Plated
- Gas Charged: No
- Grade Type: Performance
- Includes Bump Stop: No
- Internal Construction Type: Twin Tube
- Lower Mount Sleeve Inside Diameter: 0.75
- Lower Mount Sleeve Overall Length: 0.625
- Lower Mount Type: T-Bar
- Manufacturer Part Number: 5Q935
- Mounting Hardware Included: No
- Remote Reservoir: No
- Shaft Material: Carbon Steel
- Shock Stroke: 9
- Type: Telescopic
- UPC: 806990165381
- Upper Mount Sleeve Inside Diameter: 0.375
- Upper Mount Sleeve Overall Length: 3
- Upper Mount Type: Stem
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 19.5 x 3.75 x 3.5 inches
- Weight: 4.3 POUNDS
