A winch is one of those upgrades you hope you never have to brag about. But when the trail turns slick, the creek bank gets spicy, or your buddy buries his machine to the frame, suddenly that front bumper hardware becomes the star of the show. The trick is installing it once, installing it right, and not discovering your mistakes in the mud at dusk.
This guide focuses on the practical side of a KFI winch and mount setup: what to check before you buy, how to route everything cleanly, and the mistakes that love to ambush DIY installs.
Why the Mount Matters as Much as the Winch
People get excited about winch capacity, rope type, and the cool switch on the dash. Fair enough. But the mount is what transfers all that pulling force into the machine. A great winch bolted to a bad mount location is just expensive optimism.
That is why machine-specific mounts matter. They are designed around the frame structure, bumper opening, fairlead location, and clearance for things like plastics, terminals, and clutch access. If you shortcut that part, the rest of the install gets ugly fast.
In plain English: the winch does the pulling, but the mount decides whether the whole setup feels factory-clean or farm-fix sketchy.
Parts We Recommend
- Shop KFI Products for machine-specific mounts, winches, and accessories.
- Browse Winches & Accessories if you want to compare options across the whole recovery section.
-
KFI Assault Series Winch 3500 lbs. - Synthetic Cable (SKU: KFIAS-35)
Nice compact option for many ATV applications and smaller rigs. -
KFI Assault Series Winch Wide 5000 lbs. - Synthetic Cable (SKU: KFIAS-50WX)
A stronger wide-format choice for many UTV applications. -
KFI UTV Dash Rocker Switch Kit (SKU: KFIUTV-DRS-K)
A clean cabin-side control option with harness included. -

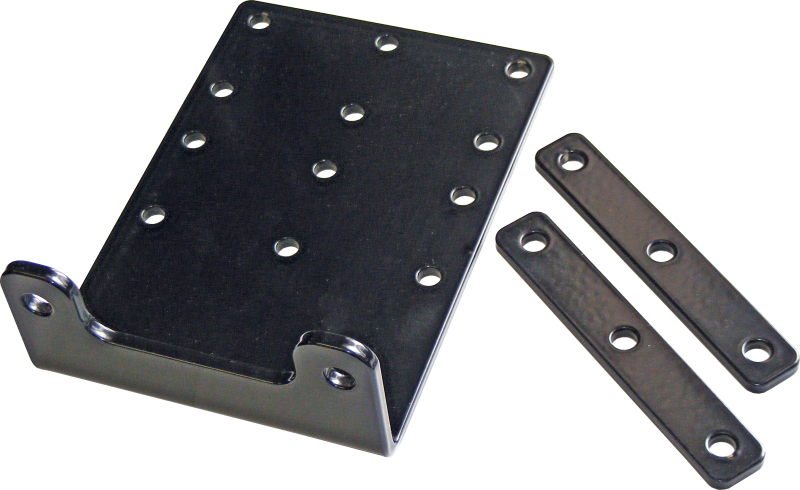

KFI 20+ Polaris Ranger 1000/Crew/Bobcat Winch Mount (SKU: KFI101830)
One example of a model-specific mount done the right way. Just make sure you buy the version that matches your exact machine.
Tools, Supplies & PPE
Tools & Supplies
- Socket set and ratchet
- Torque wrench
- Open-end wrenches
- Screwdrivers or trim tools for plastics and clips
- Zip ties, wire loom, and cushioned clamps
- Electrical tape and heat shrink
- Dielectric grease for connections if appropriate
- Drill and bits only if your specific mount requires drilling
- Flashlight or work light
- Battery terminal tools
Safety Gear
- Safety glasses
- Mechanic’s gloves
- Winch line gloves for handling rope or cable under tension
- Wheel chocks
- A line damper or heavy blanket for safe recovery testing
KFI Winch & Mount Installation Tips
1) Mock everything up before final torque
Don’t go full gorilla with the ratchet right out of the gate. Set the mount in place, confirm hole alignment, and check the fairlead opening before tightening anything down. A dry-fit tells you whether the bumper, plastics, or grille will play nice with the mount and fairlead.
This also helps you catch a classic problem early: the winch body fits, but the terminals, clutch lever, or fairlead path do not.
2) Make sure the pull path is straight
The rope or cable should feed through the fairlead as straight as possible. If the line exits at an awkward angle because the fairlead sits too far back or too high, you are building friction and weird wear into the system before the first recovery even happens.
A straight pull path is one of those boring details that pays you back every single time you use the winch.
3) Watch winch orientation like your weekend depends on it
Because it kind of does. On many KFI installs, the winch mounts in a very specific orientation, and the cable needs to spool the correct way relative to the mount and fairlead. Get that wrong and you can create clearance issues, ugly line stacking, or a setup that technically works but looks like it was installed by raccoons.
4) Route wiring like you expect the machine to move
A UTV or ATV is not a desktop computer. The chassis flexes. Plastics vibrate. Suspension cycles. Heat lives under the bodywork. Route the wires away from sharp edges, moving parts, and hot spots. Give the cables enough slack to move without hanging loose where they can rub through.
Use loom, grommets, and zip ties with some discipline. Neat wiring is not just pretty. It is the difference between a reliable winch and a trail-side electrical scavenger hunt.
5) Pick a smart spot for the contactor and controls
Keep the contactor protected, accessible, and out of the worst splash zones if your application gives you options. Same deal with the switch. You want it easy to reach, easy to understand, and not crammed somewhere that forces you to take your eyes off the trail for too long.
If you are going with a dash setup, the KFI UTV Dash Rocker Switch Kit (SKU: KFIUTV-DRS-K) cleans things up nicely and avoids that “where did I leave the remote” routine.
6) Tighten in stages, then re-check after use
Mount hardware should be snugged evenly, aligned properly, and torqued to spec. Finger-tight first. Final torque second. Re-check after the first ride or first test pull. Hardware can settle. Plastics can shift. Brackets can find their final resting place once the machine has bounced around a bit.
Common Mistakes to Avoid
Buying the wrong mount because it “looked close enough”
This is the big one. The exact year, trim, bumper style, and chassis version matter. “Ranger” is not a fitment. “Grizzly” is not a fitment. “Looks about right in the product photo” is definitely not a fitment.
Mounting to weak structure
If the mount is not tied into the structure the kit was designed around, you are asking thin metal and bumper bits to do frame-level work. They will eventually file a complaint.
Skipping the dry-fit
Dry-fitting catches clearance issues before you have a fully wired, fully torqued problem on your hands. It is faster to mock up than to redo.
Pinching or rubbing the wires
Reinstalled plastics love to trap wiring. So do bumper brackets and body seams. Before final button-up, check every place the harness passes through or near something rigid.
No slack in the battery cables
Tight cables look tidy until the machine flexes, the plastic moves, or the connector gets tugged. Then they look expensive.
Ignoring access to the clutch lever
If you cannot comfortably reach the freespool clutch when the install is done, the job is not done. That matters more than people think, especially when you need to pull line in a hurry.
Trusting the install without testing it
If the first real test is a muddy recovery with an audience, you waited too long.
Electrical System Considerations
Winches pull serious current. That means your electrical system needs to be treated like part of the install, not an afterthought.
- Start with a healthy battery. A weak battery makes a good winch act lazy, noisy, or unreliable.
- Use clean, solid connections. Dirty terminals and weak grounds create heat and voltage drop.
- Protect the harness. Loom and proper routing matter on any machine that sees vibration, water, mud, and brush.
- Keep control wiring sensible. A dash switch with keyed power is cleaner than a mystery always-hot switch setup.
- Plan for real-world use. If the machine already has lights, audio gear, sprayers, or other accessories, don’t pretend the winch is the only thing asking the charging system for help.
One more practical note: when you test or use the winch, do it with the engine running so you are not chewing up battery reserve for no reason.
Test It Before Trail Day
Do not stop at “it clicks.” That is not a test. Run through a real function check:
- Reconnect the battery and confirm all terminals are tight.
- Test IN and OUT in short bursts.
- Verify the rope or cable moves in the correct direction on the switch.
- Check that the line tracks cleanly through the fairlead.
- Pull out a short length and re-spool it under light tension so the first wraps seat nicely on the drum.
- Inspect for wire rub, hot spots, or anything touching where it should not.
A short test in the driveway beats a long night on the trail every single time.
Wrap-Up & Comment Prompt
A good KFI winch install should feel boring in the best possible way. The mount sits where it should. The fairlead lines up. The wiring is tidy. The switch works every time. Nothing rattles, rubs, or surprises you when things get slippery.
That is the goal. Quiet confidence up front, so when recovery time comes, you are focused on the pull instead of wondering what you forgot.
Tell us about your most satisfying winch install, or the mistake you only make once, in the comments below.
